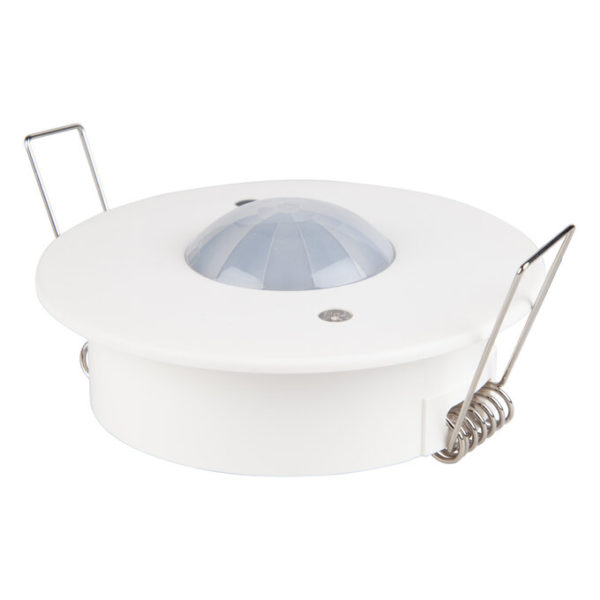

Name: SENSOR DALI-2 LIGHT/PRESENCE-6 INFRARED CEILING INTEGRATION - led-sklad.ru
SKU: 4058075837621
Availability: InStock

Quick and easy installation using spring clips
Through-wiring using pre-assembled cable with WAGO connector
Integrated DALI bus power supply (no mains connection required)
Several sensors can be connected to a DALI line
Can be integrated into lighting and building management systems that support DALI-2 sensors
Compatible with LEDVANCE VIVARES DALI light management system

GTIN	4058075837621
Nominal wattage	0.20 W
Nominal voltage	16 V
Height	32.00 mm
Product weight	80.00 g
Product color	White
Ambient temperature range	0…+40 °C
Type of protection	IP20
Dimmable	No
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
Diameter	83 mm
Protection class	II
Mains frequency	0 Hz
Length	83.00 mm
Width	83.00 mm
Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Type of current	DC
Temperature range in operation	0…+40 °C
Dimming interface	DALI-2
Cable cross-section, input side	0.2…1.3 mm²
Wire preparation length, input side	7…9 mm
Type of installation	Ceiling integration
Maximum installation height	3.7 m
Detection area	6 m
Detection angle	360 °
Operating range, light sensor	5…550 lx
Max. presence detection area	6 m
