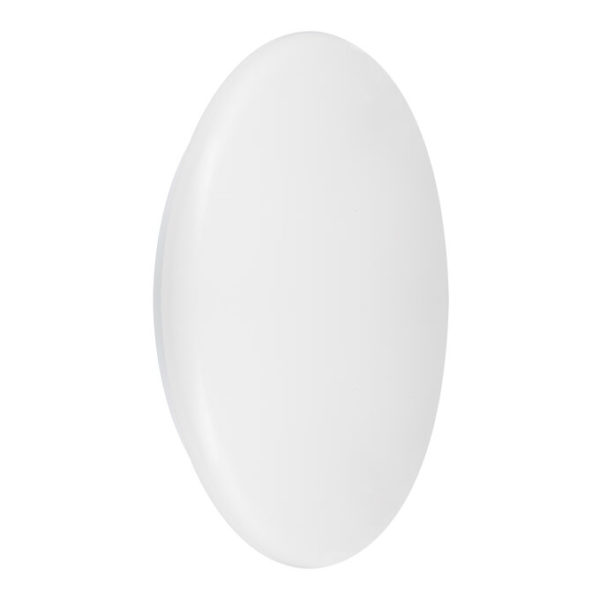

SF CIRC 350 V 18W 3CCT IP44

SF CIRC 350 V 18W 3CCT IP44

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854042072 Категория:
Product benefits
  • Indoor luminaire with high luminous efficacy
  • Highly versatile due to selectable CCT in 3000K, 4000K and 5000K
  • Reduced overall height of only 75mm compared to standard version
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
  • 5 years guarantee
Areas of application
  • Corridors
  • Stairways
  • Bathrooms
  • Foyers
Product features
  • Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
  • Extended lifetime (L70/B10): up to 50,000 h (at 25°C)
  • Impact resistance: IK03
  • Metal housing, PMMA cover
  • Ambient temperature in operation: -20…+40 °C
  • Indoor use only, not suitable for outdoor use
Equipment / Accessories
  • Replacement cover optionally available
References / Links
  • For Guarantee see
GTIN

4099854042072
Nominal wattage

18.00 W
Nominal voltage

220…240 V
Nominal current

85.000 mA
Luminous flux

1440 lm
Luminous efficacy

80 lm/W
Color temperature

3000 K / 4000 K / 5000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

75.00 mm
Product weight

560.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-pin
Type of protection

IP44
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

350 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceili
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

7.2 A
Inrush current time Th50

5.6 µs
Power factor λ

> 0.70
Total harmonic distortion

< 60 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Reference control setting of contained light source (Kelvin)

4000 K
Max. number of luminaires per miniature circuit breaker B16

104
Max. number of luminaires per miniature circuit breaker C10

83
Max. number of luminaires per miniature circuit breaker C16

133
Protection class IK (shock resistance)

IK03
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

33000 h 1)
Light emitting surface material

PMMA
Output current

220 mA
Lifespan L90/B10 at 25 °C

15000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
ECG - Output ripple current

< 5 %
EPD

LEDV-00010-V01.01-EN
