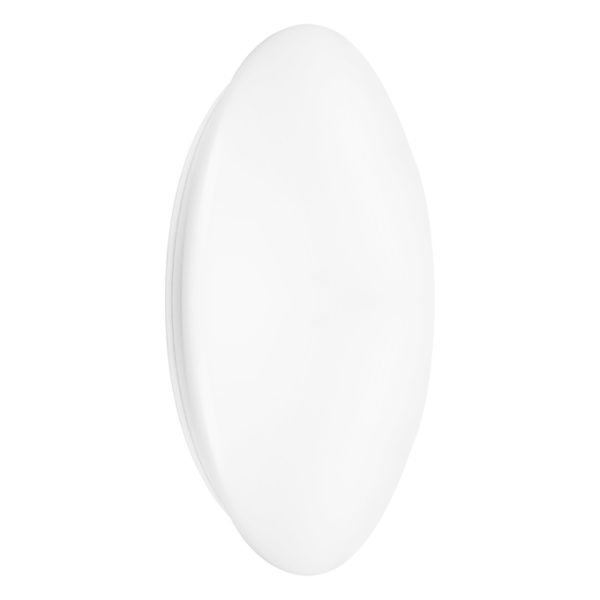

SF CIRC 500 V 42W 830 IP44 DALI

SF CIRC 500 V 42W 830 IP44 DALI

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854077890 Категория:
Product benefits
  • Indoor luminaire with high luminous efficacy
  • Integrated DALI-2 driver for extended functionalities
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
  • 5 years guarantee
Areas of application
  • Corridors
  • Stairways
  • Bathrooms
  • Foyers
Product features
  • Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
  • Push DIM function for dimming and switching directly on a pushbutton
  • Extended lifetime (L70/B10): up to 50,000 h (at 25°C)
  • Impact resistance: IK03
  • Metal housing, PMMA cover
  • Ambient temperature in operation: -20…+40 °C
  • Indoor use only, not suitable for outdoor use
Equipment / Accessories
  • Replacement cover optionally available
References / Links
  • For Guarantee see
GTIN

4099854077890
Nominal wattage

42.00 W
Nominal voltage

220…240 V
Nominal current

180.000 mA
Luminous flux

3500 lm
Luminous efficacy

83 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

< 5 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

105.00 mm
Product weight

1260.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-20…+45 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 5-pin
Type of protection

IP44
Dimmable

Yes
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

500.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceili
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

10.90 A
Inrush current time Th50

330 µs
Power factor λ

> 0.90
Total harmonic distortion

< 10 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

25
Max. number of luminaires per miniature circuit breaker C10

26
Max. number of luminaires per miniature circuit breaker C16

43
Protection class IK (shock resistance)

IK03
Type of dimming

DALI-2
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

VIVARES
Lifespan L80/B10 at 25 °C

45000 h 1)
Light emitting surface material

Polymethylmethacrylate (PMMA)
Luminous flux in emergency operation mode

550 lm
Output current

1000 mA
Lifespan L90/B10 at 25 °C

40000 h
Low flicker

Yes
Wattage in emergency operation mode

6 W
ECG - Output ripple current

< 30 %
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation included
IoT ready

Support of DALI data type PART 251, 252, 253 1)
