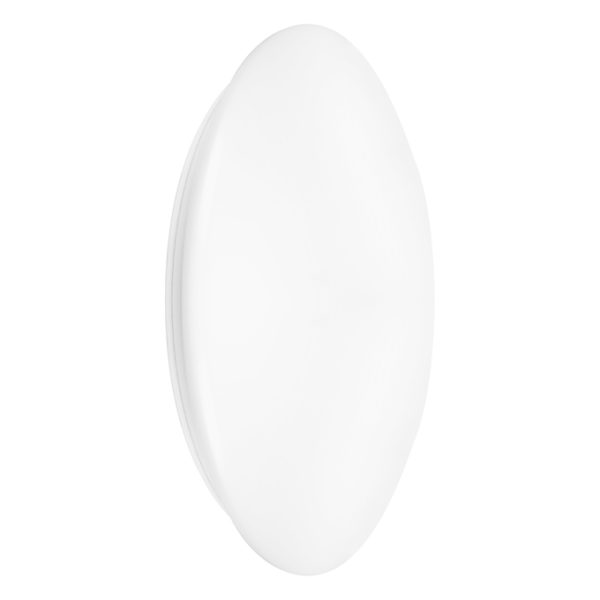

SF CIRC 500 ZB V 42W 830 IP44

SF CIRC 500 ZB V 42W 830 IP44

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854514739 Категория:
Product benefits
  • Suitable luminaire for DIRECT EASY / VIVARES Zigbee and other Zigbee 3.0 Light Management Systems
  • Indoor luminaire with high luminous efficacy
  • Integrated Zigbee 3.0 driver for extended functionalities
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
Areas of application
  • Corridors
  • Stairways
  • Bathrooms
  • Foyers
Product features
  • IoT-ready luminaire with Zigbee 3.0 technology
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
  • Extended lifetime (L70/B10): up to 50,000 h (at 25°C)
  • Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
  • Metal housing, PMMA cover
  • Ambient temperature in operation: -20…+40 °C
  • Indoor use only, not suitable for outdoor use
Equipment / Accessories
  • Replacement cover optionally available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • For Guarantee see
GTIN

4099854514739
Nominal wattage

42.00 W
Nominal voltage

220…240 V
Nominal current

180.000 mA
Luminous flux

3500 lm
Luminous efficacy

83 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

< 5 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

105.00 mm
Product weight

1260.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-20…+45 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-pin
Type of protection

IP44
Dimmable

Yes
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

500.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceili
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

10.90 A
Inrush current time Th50

330 µs
Power factor λ

> 0.90
Total harmonic distortion

< 10 %
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

25
Max. number of luminaires per miniature circuit breaker C10

26
Max. number of luminaires per miniature circuit breaker C16

43
Protection class IK (shock resistance)

IK03
Application environment

Indoor
Added function

VIVARES
Lifespan L80/B10 at 25 °C

45000 h 1)
Light emitting surface material

Polymethylmethacrylate (PMMA)
Luminous flux in emergency operation mode

600 lm
Output current

1000 mA
Lifespan L90/B10 at 25 °C

40000 h
Low flicker

Yes
Wattage in emergency operation mode

6 W
ECG - Output ripple current

< 30 %
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation included
IoT ready

Support of Zigbee Data Clusters: 0x0302 (Luminaire Asset Management), 0x0702 (Smart Energy: Metering), 0x0B04 (Electrical Measurement) 1)
