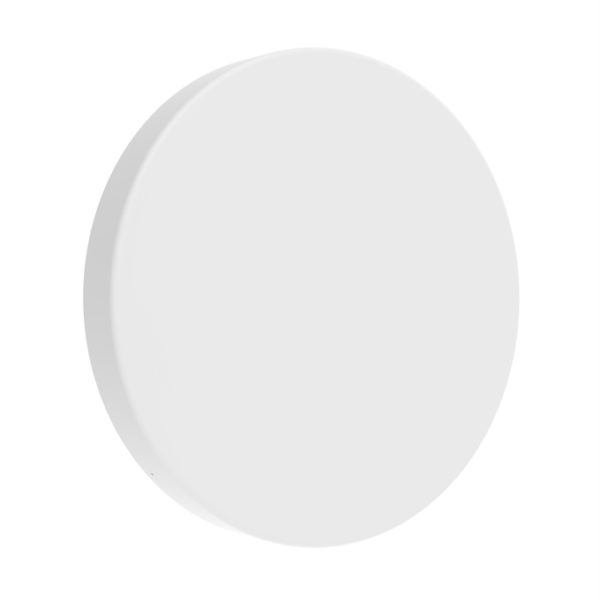

SF DISC EL SNM 300 V 21W ML 83040

SF DISC EL SNM 300 V 21W ML 83040

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854640582 Категория:
Product benefits
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Multiple sensor settings by DIP switch: range, daylight detection, hold time and DIM-level /-period
  • Optional wired leader/follower function
  • Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
  • Indoor luminaire with high luminous efficacy up to 120 lm/W
  • High color consistency with SDCM 3
  • Tool-free electrical connection due to push button connector
  • Easy locking system to prevent unauthorized access
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Direct replacement for surface luminaires with integrated CFLni lamps
  • Corridors
  • Stairways
  • Bathrooms
  • Foyers
Product features
  • Luminaire suitable for normal lighting and emergency lighting
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
  • High frequency sensor for daylight, motion detection and corridor function
  • Type of protection: IP54 (wall and ceiling)
  • Impact resistance: IK10
  • Lifetime (L80/B10): up to 75,000 h (at 25 °C)
  • Polycarbonate (PC) housing, PC-diffuser
  • Ambient temperature in operation: -20…+45 °C
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
  • Through-wiring possible
  • Indoor use only, not suitable for outdoor use
  • SF DISC family versions available: dimmable, on/off, DALI-2, sensor and/or emergency lighting function
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854640582
Nominal wattage

21 W / 15 W / 9 W
Nominal voltage

220…240 V
Nominal current

100 mA
Luminous flux

2520 lm / 1800 lm / 1080 lm 1)
Luminous efficacy

120 lm/W
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

3 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

125 °
Height

56.00 mm
Product weight

1330.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+45 °C
Temperature range at storage

-20…+80 °C
Type of connection

Push-in clamp
Type of protection

IP54
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

300.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Octamethylcyclotetrasiloxane (D4) — (556-67-2)
Mounting type

Surface
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

Automatic
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

10,0 A
Inrush current time Th50

250 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Only by an expert
Reference control setting of contained light source (Kelvin)

4000 K
Max. number of luminaires per miniature circuit breaker B16

25
Max. number of luminaires per miniature circuit breaker C10

25
Max. number of luminaires per miniature circuit breaker C16

40
Protection class IK (shock resistance)

IK10
Application environment

Indoor
Battery size [GMS]

Others
Type of Battery

LiFePO4
Nominal voltage of battery

3.2 V
Nominal capacity of battery

3000 mAh
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

75000 h 1)
Type of sensor

Motion
Sensor technology

Microwave
Sensor detection angle

120 °
Detection range of motion sensor

2…6 m
Battery charging time

24 h
Adjustable

No
Detection threshold of daylight sensor

5…170 lx
Light emitting surface material

Polycarbonate (PC)
Sensor controlled switching time

5 s…20 min
Luminous flux in emergency operation mode

180 lm
Battery life in emergency operation mode

3 h
Output current

500 mA
Lifespan L90/B10 at 25 °C

55000 h
Type of emergency light operation

Non-maintain
Luminous flux in maintained operation mode

180 lm
Surge capability (L-N)

1000 V
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

1.5 W
ECG - Output ripple current

< 5 %
Type of Emergency Lighting (EL)

EL unit (battery and controller) for decentral operation included
Area of emergency application

Anti-panic lighti
Wattage in maintained operation mode

1.5 W
9 W

114 lm/W
15 W

114 lm/W
21 W

114 lm/W
