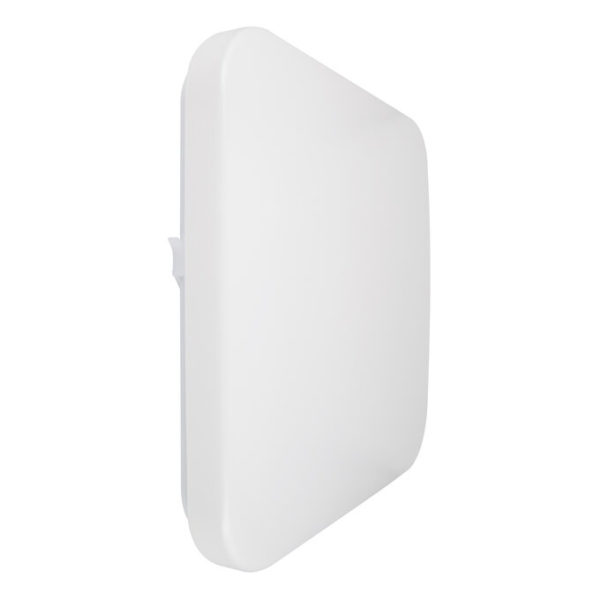

SF SQUARE 330 SEN V 24W 840 IP44

SF SQUARE 330 SEN V 24W 840 IP44

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854042010 Категория:
Product benefits
  • Easy adjustment of sensor range, daylight detection and hold time
  • Indoor luminaire with high luminous efficacy
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
  • 3 years guarantee
Areas of application
  • Corridors
  • Stairways
  • Bathrooms
  • Foyers
Product features
  • High frequency sensor for daylight and motion detection
  • Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
  • Impact resistance: IK03
  • Metal housing, PMMA cover
  • Ambient temperature in operation: -20…+40 °C
  • Indoor use only, not suitable for outdoor use
Equipment / Accessories
  • Replacement cover optionally available
References / Links
  • For Guarantee see
GTIN

4099854042010
Nominal wattage

24.00 W
Nominal voltage

220…240 V
Nominal current

115.000 mA
Luminous flux

2000 lm
Luminous efficacy

83 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

75.00 mm
Product weight

690.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-pin
Type of protection

IP44
Dimmable

No
Lifespan L70/B50 at 25 °C

35000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceili
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

7.2 A
Inrush current time Th50

5.9 µs
Power factor λ

> 0.70
Total harmonic distortion

< 60 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

104
Max. number of luminaires per miniature circuit breaker C10

66
Max. number of luminaires per miniature circuit breaker C16

106
Protection class IK (shock resistance)

IK03
Length

330.00 mm
Width

330.00 mm
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Lifespan L80/B10 at 25 °C

33000 h 1)
Type of sensor

Moti
Sensor technology

Microwave
Sensor detection angle

120 °
Detection range of motion sensor

4…7 m
Detection threshold of daylight sensor

2…50 lx
Light emitting surface material

PMMA
Sensor controlled switching time

5 s…30 min
Output current

300 mA
Lifespan L90/B10 at 25 °C

15000 h
Sensor IK rating

IK03
Low flicker

Yes
RAL Color (most similar)

RAL 9003
ECG - Output ripple current

< 5 %
