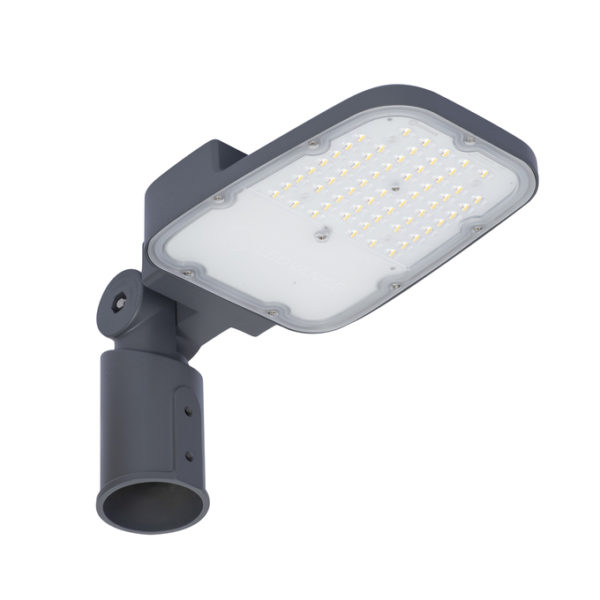

SL AREA SPD SM V 30W 765 RV20ST GY

SL AREA SPD SM V 30W 765 RV20ST GY

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854030338 Категория:
Product benefits
  • Functional and minimalistic design
  • Low maintenance and operation costs due to long lifetime of LED
  • 5 years guarantee
Areas of application
  • Outdoor use (IP66)
  • M-, C- and P-class roads acc. to EN 13201
  • Car parks
  • Area lighting
Product features
  • Light distributions optimized for streets of similar width to the pole height
  • Spigot included, suitable for 48…60 mm diameter poles
  • Adjustable spigot for both side-entry and post-top installation
  • +/- 30° tilt angle adjustment without opening the housing
  • High luminous efficacy: up to 135 lm/W
  • Operating temperature: -30…50 °C
  • High surge protection: up to 10 kV (L/N-PE)
GTIN

4099854030338
Nominal wattage

30.00 W
Nominal voltage

100…240 V
Nominal current

135.000 mA
Luminous flux

4050 lm
Luminous efficacy

135 lm/W
Color temperature

6500 K
Light color (designation)

Cool Daylight
Color rendering index Ra

70
Standard deviation of color matching

< 5 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

58° x 160°
Height

73.00 mm
Product weight

1450.00 g
Product color

Gray
Housing color

Gray
Body material

Aluminum
Ambient temperature range

-30…+50 °C
Temperature range at storage

-30…+80 °C
Type of connection

Cable, 3-pole
Type of protection

IP66
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Side entry, post top
Mounting location

Pole
Protection class

I
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

8.9 A
Inrush current time Th50

100 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Max. number of luminaires per miniature circuit breaker B16

88
Max. number of luminaires per miniature circuit breaker C10

55
Max. number of luminaires per miniature circuit breaker C16

40
Protection class IK (shock resistance)

IK08
Photobiological safety group acc. to EN62471

RG1
Length

448.00 mm
Width

172.00 mm
Application environment

Outdoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Lifespan L80/B10 at 25 °C

88000 h 1)
Cable length

500 mm
Adjustable

Yes
Light emitting surface material

Polycarbonate (PC)
Output current

160 mA
Lifespan L90/B10 at 25 °C

44000 h
Surge capability (L-N)

10 kV
Surge capability (L/N-Ground)

10 kV
Low flicker

Yes
ECG - Output ripple current

< 5 %
Type of connection for sensor/communication module

Other
