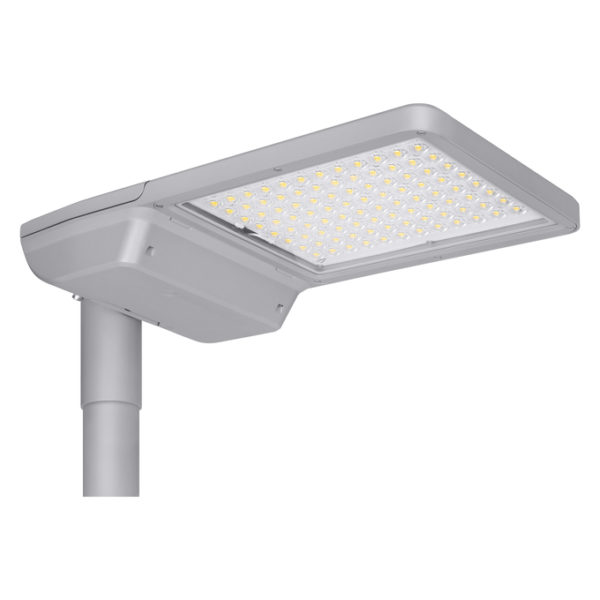

SL FLEX LA RV25ST P 110W 727 WAL

SL FLEX LA RV25ST P 110W 727 WAL

60 485,70 ₽

Артикул: 4058075552418 Категория:
Product benefits
  • Durable design and highest quality component selection for long lasting performance
  • Quick and easy wiring, due to tool-free housing opening and push button terminal
  • High light uniformity
  • 3 light colors available, perfectly suited to illuminate highly diverse surroundings
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Automatic mains disconnection when opening the housing
  • 5 years guarantee
Areas of application
  • Outdoor use (IP66)
  • M-, C- and P-class roads acc. to EN 13201
  • Parking
  • Public areas
  • Industry
Product features
  • Light distributions optimized for streets of similar width to the pole height
  • Very long lifetime (L90/B10): Up to 100,000 h (at 25 °C)
  • Spigot for 48-60 mm poles included
  • Additional reduction for 42 mm and adapter for 76 mm poles available separately
  • Adjustable spigot for both side-entry and post-top installation
  • +/- 15° tilt angle adjustment without opening the housing
  • High luminous efficacy: up to 155 lm/W
  • Operating temperature: -40…50 °C
  • High surge protection: up to 10 kV (L/N-GND)
  • Provides functional or mood lighting
  • Protection class: II
Equipment / Accessories
  • Spigot for 42 and 76 mm poles available separately
References / Links
  • For Guarantee see
GTIN

4058075552418
Nominal wattage

110.00 W
Nominal voltage

220…240 V
Nominal current

528 mA
Luminous flux

15250 lm
Luminous efficacy

139 lm/W
Color temperature

2700 K
Light color (designation)

Warm White
Color rendering index Ra

70
Standard deviation of color matching

< 5 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

25 ° x 145 °
Height

90.00 mm
Product weight

7700.00 g
Product color

White aluminum
Housing color

White aluminum
Body material

Aluminum
Ambient temperature range

-40…+50 °C
Temperature range at storage

-30…+80 °C
Type of connection

Screwless terminal
Type of protection

IP66
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Additional info can be provided per individual request
Replaceable light source

No
Mounting type

Post top
Mounting location

Pole
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Tempered glass
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

65 A
Inrush current time Th50

220 µs
Power factor λ

> 0.90
Total harmonic distortion

< 10 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

8
Max. number of luminaires per miniature circuit breaker C10

9
Max. number of luminaires per miniature circuit breaker C16

17
Protection class IK (shock resistance)

IK08
Photobiological safety group acc. to EN62471

RG1
Length

617.00 mm
Width

300.00 mm
Application environment

Outdoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Lifespan L80/B10 at 25 °C

100000 h 1)
Adjustable

Yes
Light emitting surface material

Glass
Output current

560 mA
Lifespan L90/B10 at 25 °C

100000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9006
ECG - Output ripple current

≤ 10 %
EPD

LEDV-00023-V01.01-EN
