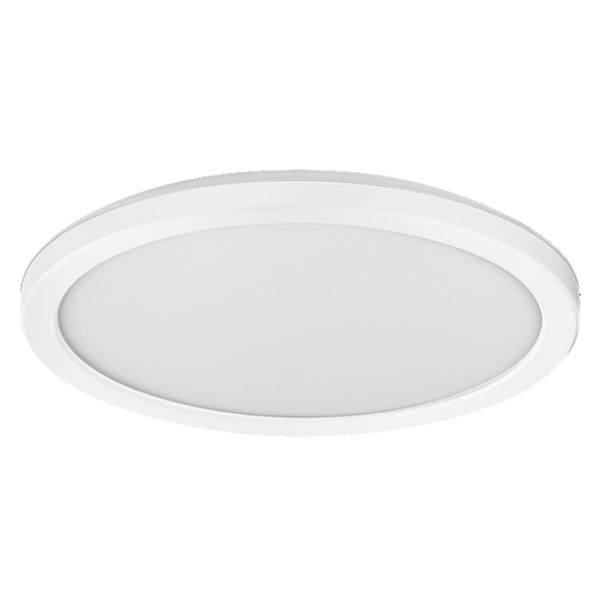

SMART+ Wifi Orbis Ultra Slim Backlight 235mm White RGB + TW

SMART+ Wifi Orbis Ultra Slim Backlight 235mm White RGB + TW

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854473685 Категория:
Product benefits
  • Easy and quick installation
  • Main light and back light
  • Both light are independent
  • TW and RGB
Areas of application
  • Indoor applications
  • Kitchens, living rooms, children’s rooms or home offices
Product features
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Dimmable
  • Network protocol: WiFi
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
  • Mounting bracket included
  • Mounting screws and dowels included
  • Control via app or voice control requires compatible Smart home system
  • For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
  • Further information and frequently asked questions (FAQs) at
GTIN

4099854473685
Nominal wattage

19.00 W
Nominal voltage

220…240 V
Nominal current

70.000 mA
Luminous flux

1140 lm
Luminous efficacy

60 lm/W
Color temperature

2700…6500 K
Light color (designation)

RGBTW
Color rendering index Ra

> 80
Standard deviation of color matching

≤6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

110 °
Height

27.00 mm
Product weight

460.00 g
Product color

White
Housing color

White
Body material

Plastic
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-pin
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

235.00 mm
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Wall
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

300 µs
Power factor λ

> 0.90
Total harmonic distortion

< 30 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

1790 lm
Max. number of luminaires per miniature circuit breaker B16

15
Max. number of luminaires per miniature circuit breaker C16

24
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Type of dimming

WiFi
Application environment

Indoor
Product remark

Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.
UGR

< 25
