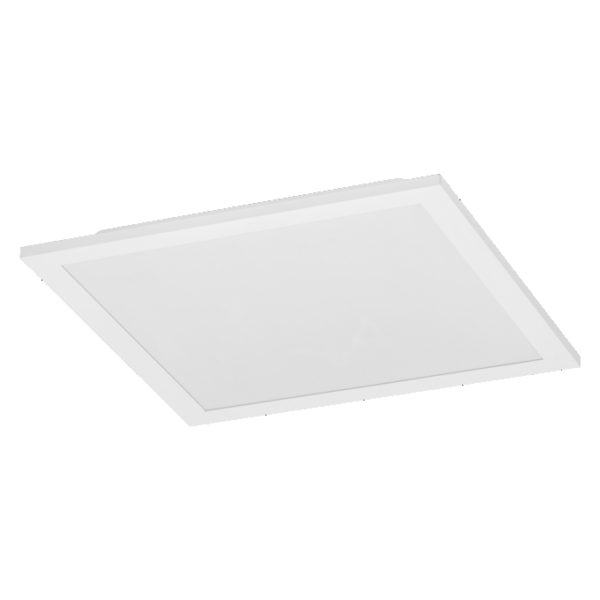

Smart+ Wifi Planon Magic 300x300mm

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854472053 Категория:
Areas of application
  • Indoor applications
  • Kitchens, living rooms, children’s rooms or home offices
Product features
  • Tunable White and Magic RGB
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Adjustable color temperature via Tunable White: 2,700…6,500 K
  • Dimmable
  • Network protocol: WiFi
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
  • Remote control and battery included
  • For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
References / Links
  • Further information and frequently asked questions (FAQs) at
GTIN

4099854472053

Nominal wattage

14.00 W

Nominal voltage

220…240 V

Nominal current

100.000 mA

Luminous flux

1100 lm

Luminous efficacy

78 lm/W

Color temperature

2700…6500 K

Light color (designation)

RGBTW

Color rendering index Ra

> 80

Standard deviation of color matching

6 sdcm

Photobiological safety group acc. to EN62778

RG1

Beam angle

120 °

Height

60.00 mm

Product weight

660.00 g

Product color

White

Housing color

White

Body material

Steel

Ambient temperature range

-20…+40 °C

Temperature range at storage

-20…+80 °C

Type of connection

Terminal, 3-Pole (L, N, PE)

Type of protection

IP20

Dimmable

Yes

Lifespan L70/B50 at 25 °C

30000 h

Number of switching cycles

100000

Minimum rate of recycled material in packaging

80 % 1)

Minimum percentage of recycled content in the product

0 % 1)

Product recyclability

Mostly recyclable product 1)

Packaging recyclability

Mostly recyclable packaging 1)

List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No

Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes

List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)

Mounting type

Surface

Protection class

I

Mercury content

0.0 mg

Ball shot safe

No

With light source

Yes

Cover material

Polymethylmethacrylate (PMMA)

Luminaire with limited surface temperature, "D sign"

No

Mains frequency

50…60 Hz

Inrush current time Th50

380 µs

Power factor λ

≥0.5

Total harmonic distortion

< 60 %

Operating mode

Electronic control gear (ECG)

Glow Wire Test according to IEC 60695-2-12

650 °C

Total luminous flux of contained light sources

1600 lm

Max. number of luminaires per miniature circuit breaker B16

27

Max. number of luminaires per miniature circuit breaker C10

24

Max. number of luminaires per miniature circuit breaker C16

38

Protection class IK (shock resistance)

IK03

Photobiological safety group acc. to EN62471

RG1

Length

295.00 mm

Width

295.00 mm

Application environment

Indoor

Battery size [GMS]

CR2025

Product remark

Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.

Number of illuminants

empty
