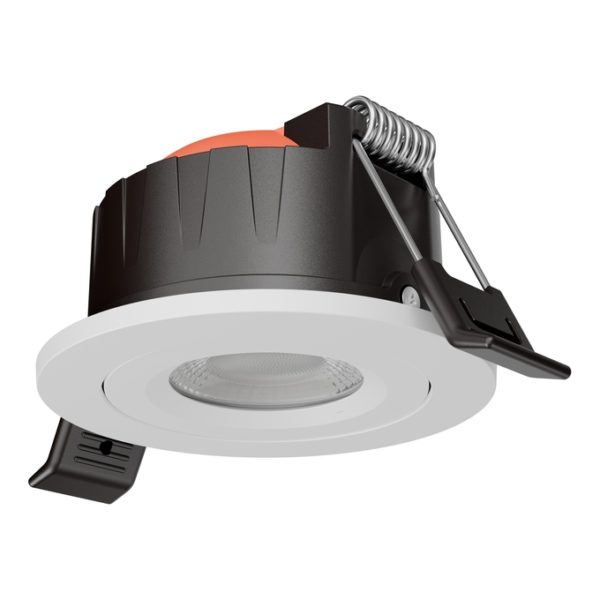

SP CBO ADJ DA V 6W ML 9273040 IP65 WT

SP CBO ADJ DA V 6W ML 9273040 IP65 WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854736551 Категория:
Product benefits
  • Easy color temperature adjustment via switch on the front of the spot
  • Multi Lumen: Brightness adjustment via a switch on the front of the spot
  • Can be covered with most insulating materials
Areas of application
  • Direct replacement for recessed spotlights with halogen lamps
  • General illumination
  • Hotel rooms and corridors
  • Bars, restaurants
  • Residential interiors
Product features
  • Color temperature switch (CCT): 2700 K, 3000 K, 4000 K
  • Type of protection: IP65
  • Housing material: polycarbonate (PC)
  • Ring colors in white matt or anodized aluminum
  • Can be controlled with DALI system
  • DALI-2 certified
  • Dimmable (with many common dimmers)
Equipment / Accessories
  • Already equipped with white round ring
  • Additional cover rings separately available in round and square shape and in different colors
  • Security rope for luminaire included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
  • For Guarantee see
GTIN

4099854736551
Nominal wattage

6 W / 4.3 W
Nominal voltage

220…240 V
Nominal current

36…30 mA
Luminous flux

570 lm / 540 lm / 410 lm / 400 lm
Luminous efficacy

95 lm/W / 90 lm/W
Color temperature

2700 K / 3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 90
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

60 °
Height

41.00 mm
Product weight

279.00 g
Product color

White
Housing color

Black
Body material

Aluminum, Polycarbonate (PC)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Push terminal
Type of protection

IP65/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

82.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Plastic
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

5.13 A
Inrush current time Th50

26 µs
Power factor λ

≥0.5
Total harmonic distortion

< 35 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

2700 K
Max. number of luminaires per miniature circuit breaker B16

64
Max. number of luminaires per miniature circuit breaker C10

40
Max. number of luminaires per miniature circuit breaker C16

64
Protection class IK (shock resistance)

IK03
Type of dimming

DALI-2
Application environment

Indoor
Product remark

Available from March 2026
Luminous intensity

530 cd
Added function

MULTI SELE
Lifespan L80/B10 at 25 °C

40000 h 1)
Cable length

600 mm
Adjustable

Yes
Light emitting surface material

Plastic
Mounting diameter

68 mm
Mounting depth

38 mm
Output current

150 mA
ECG - Length

164 mm
ECG - Width

45,0 mm
ECG - Height

25,0 mm
Lifespan L90/B10 at 25 °C

18000 h
Dimming range

1…100 %
Low flicker

Yes
RAL Color (most similar)

RAL 9003
ECG - Output ripple current

≤ 10 %
IoT ready

Support of DALI data type PART 251, 252, 253 1)
6 W

90 lm/W
4.3 W

90 lm/W
