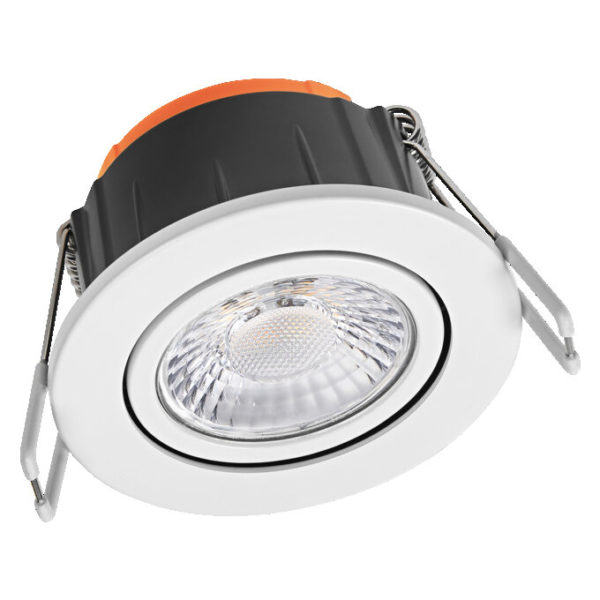

SP CBO DA ADJ V 6W MC 930 IP65 WT

SP CBO DA ADJ V 6W MC 930 IP65 WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075846326 Категория:
Product benefits
  • Color temperature adjustment via switch on the back of the spot
  • Can be covered with most insulating materials
Areas of application
  • Direct replacement for recessed spotlights with halogen lamps
  • General illumination
  • Hotel rooms and corridors
  • Bars, restaurants
  • Residential interiors
Product features
  • Color temperature switch (CCT): 2700 K, 3000 K, 4000 K
  • Can be controlled with DALI system
  • DALI-2 certified
  • Type of protection: IP65 (room side)
  • Housing material: polycarbonate (PC)
Equipment / Accessories
  • Already equipped with white round ring
  • Additional cover rings separately available in round and square shape and in different colors
References / Links
  • For Guarantee see
GTIN

4058075846326
Nominal wattage

6.00 W
Nominal voltage

220…240 V
Nominal current

35.000 mA
Luminous flux

540 lm 1)
Luminous efficacy

90 lm/W 2)
Color temperature

2700 K / 3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 90
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

60 °
Height

48.00 mm
Product weight

285.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Push terminal
Type of protection

IP65/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

81.50 mm
Replaceable light source

No
Mounting type

Recessed
Mounting location

Ceiling
Protection class

III
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Plastic
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

7.5 A
Inrush current time Th50

40 µs
Power factor λ

0.50
Total harmonic distortion

< 35 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

40
Max. number of luminaires per miniature circuit breaker C10

30
Max. number of luminaires per miniature circuit breaker C16

40
Protection class IK (shock resistance)

IK03
Type of dimming

DALI-2
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

35000 h 1)
Cable length

550 mm
Adjustable

Yes
Light emitting surface material

Plastic
Mounting diameter

68 mm
Mounting depth

48 mm
UGR

< 25
Output current

150 mA
ECG - Length

180 mm
ECG - Width

44 mm
ECG - Height

32 mm
Lifespan L90/B10 at 25 °C

19000 h
Dimming range

5…100 %
Low flicker

Yes
RAL Color (most similar)

RAL 9016
ECG - Output ripple current

< 6 %
EPD

LEDV-00042-V01.01-EN
