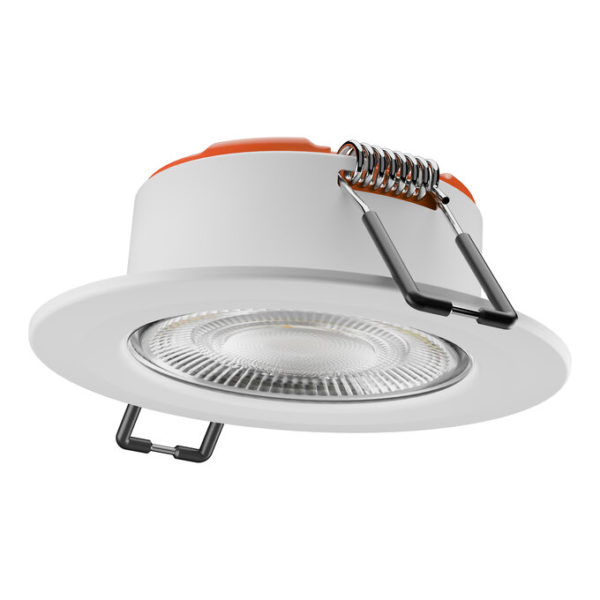

SP CBO FPFIX E 5W MC827 DIM IP65 WT

SP CBO FPFIX E 5W MC827 DIM IP65 WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854459849 Категория:
Product benefits
  • Color temperature adjustment via switch on the back of the spot
  • Can be covered with most insulating materials
  • Fire-rated: Designed and tested to meet fire rating standards (in certain fire rated ceilings)
Areas of application
  • Direct replacement for recessed spotlights with halogen lamps
  • General illumination
  • Hotel rooms and corridors
  • Bars, restaurants
  • Residential interiors
Product features
  • Adjustable color temperature (Multi Color): 2700 K, 3000 K, 4000 K
  • Type of protection: IP65 (room side)
  • Housing material: iron
  • Ring material: plastic
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
  • For Guarantee see
GTIN

4099854459849
Nominal wattage

5.00 W
Nominal voltage

220…240 V
Nominal current

27.000 mA
Luminous flux

560 lm / 510 lm
Luminous efficacy

120 lm/W / 110 lm/W
Color temperature

2700 K / 3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

60 °
Height

32.00 mm
Product weight

139.00 g
Product color

White
Housing color

White
Body material

Plastic, METAL
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Plug-In connection
Type of protection

IP65/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

90.00 mm
Replaceable light source

No
Mounting type

Recessed
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Plastic
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

1.36 A
Inrush current time Th50

200 µs
Power factor λ

0.70
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

281
Max. number of luminaires per miniature circuit breaker C10

237
Max. number of luminaires per miniature circuit breaker C16

380
Protection class IK (shock resistance)

IK03
Type of dimming

PHASE CUT
Application environment

Indoor
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

50000 h 1)
Cable length

110 mm
Adjustable

No
Mounting diameter

70 mm
Mounting depth

32 mm
UGR

< 25
Output current

14.5 mA
Lifespan L90/B10 at 25 °C

30000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
ECG - Output ripple current

< 5 %
EPD

LEDV-00048-V01.01-EN
5 W

120 lm/W
