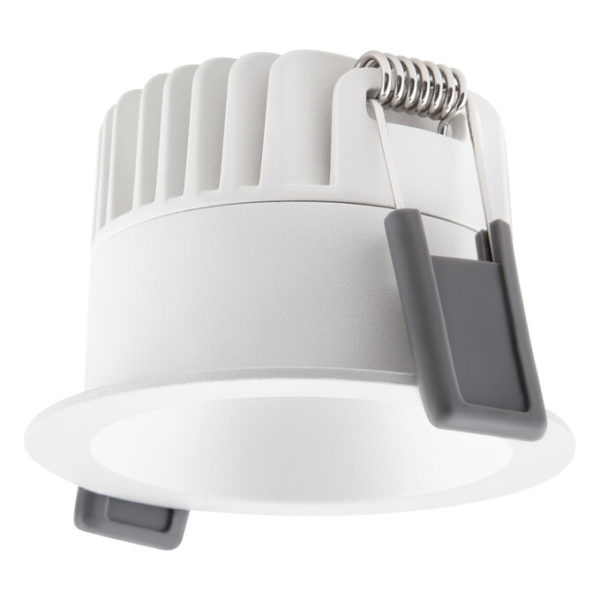

SP DK FIX P 8W 927 PS DIM IP44 WT

SP DK FIX P 8W 927 PS DIM IP44 WT

4 982,96 ₽

Артикул: 4058075799806 Категория:
Product benefits
  • Darklight: Special construction for enhanced low-glare light-comfort
  • Stealth appearance thanks to extra small bezel
  • Multi Lumen: Brightness adjustment via dip switches on the driver
  • Easy replacement of external driver thanks to plug with bayonet lock
  • Easy installation and electrical connection thanks to tool-free electrical connectors
  • SCALE Design – great appearance, valuable materials and small size fits into every surrounding
  • 5 years guarantee
Areas of application
  • Direct replacement for recessed spotlights with halogen lamps
  • General illumination
  • Hotel rooms and corridors
  • Bars, restaurants
  • Accent lighting
  • Galleries, museums
  • Residential interiors
Product features
  • Color rendering index Ra: 90
  • Type of protection: IP44 (room side)
  • Beam angle: 36°
  • Die-cast aluminum housing
  • Silicon-pad protected springs
  • Dimmable (with many common dimmers, see also )
  • Through-wiring possible
Equipment / Accessories
  • External control gear included with dip-switches to select power during installation
  • Refurbishment rings are available as accessory
  • Selected DALI 2.0 driver available as accessory
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
  • For Guarantee see
GTIN

4058075799806
Nominal wattage

8 W / 6 W / 4 W
Nominal voltage

220…240 V
Nominal current

37mA / 28mA / 20 mA
Luminous flux

640 lm / 480 lm / 320 lm
Luminous efficacy

80 lm/W
Color temperature

2700 K
Light color (designation)

Warm White
Color rendering index Ra

90
Standard deviation of color matching

≤3 sdcm
Flickering metric (Pst LM)

< 1
Photobiological safety group acc. to EN62778

RG1
Beam angle

36 °
Height

54.00 mm
Product weight

260.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Push terminal
Type of protection

IP44/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

30000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

81.00 mm
Replaceable light source

No
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

2 A
Inrush current time Th50

60 µs
Power factor λ

0.90
Total harmonic distortion

< 20 %
Operating mode

Electronic control gear (ECG)
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

2700 K
Total luminous flux of contained light sources

620 lm
Max. number of luminaires per miniature circuit breaker B16

336
Max. number of luminaires per miniature circuit breaker C10

210
Max. number of luminaires per miniature circuit breaker C16

336
Protection class IK (shock resistance)

IK03
Type of dimming

PHASE CUT
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Luminous intensity

1350 cd
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

41000 h 1)
Adjustable

No
Light emitting surface material

PMMA
Mounting diameter

68 mm
Mounting depth

60,0 mm
UGR

< 19
Output current

180 mA
ECG - Length

68.00 mm
ECG - Width

55,0 mm
ECG - Height

22,0 mm
Lifespan L90/B10 at 25 °C

18000 h
Surge capability (L-N)

1 kV
Surge capability (L/N-Ground)

1 kV
Low flicker

Yes
RAL Color (most similar)

RAL 9016
ECG - Output ripple current

< 10 %
