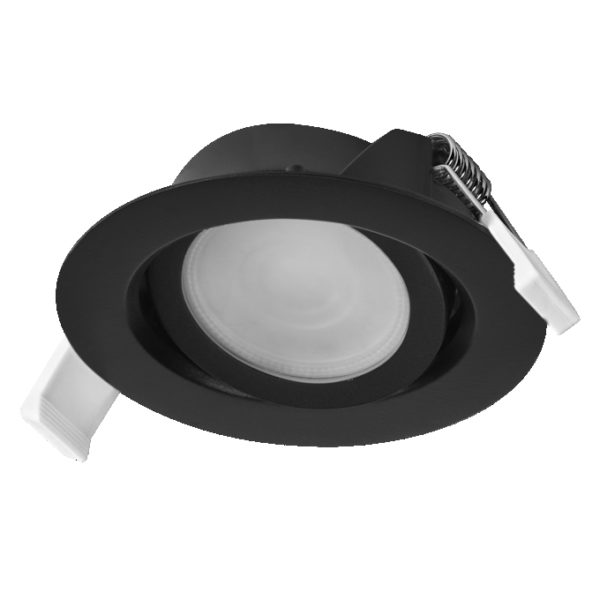

Spot Set Recess CCT Adjustable 4.9W CCT 120° Black

Spot Set Recess CCT Adjustable 4.9W CCT 120° Black

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854595769 Категория:
Product benefits
  • Highly versatile due to selectable CCT
  • Can be rotated and swiveled for optimum illumination
  • Through-wiring possible with included connector box
  • Easy mounting
Areas of application
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Recessed ceiling mounting
  • Click-CCT version: color temperature adjustable in three steps by repeated switching
  • Adjustable swivel angle
  • With integrated LED module and driver
  • Available with color temperature: 2,700 K, 4,000 K, 6,500 K
  • Through wiring possible
  • Type of protection: IP20
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4099854595769
Nominal wattage

4.90 W
Nominal voltage

220…240 V
Nominal current

42.000 mA
Luminous flux

200 lm
Luminous efficacy

41 lm/W
Color temperature

2700 K / 4000 K / 6500 K
Light color (designation)

Warm Whi
Color rendering index Ra

80
Standard deviation of color matching

6 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG1
Beam angle

120 °
Height

27.50 mm
Product weight

96.00 g
Product color

Black
Housing color

Black
Body material

Aluminum, Plastic
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

25000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

90.00 mm
Replaceable light source

No
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

7.5 A
Power factor λ

0.40
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

2700 K
Total luminous flux of contained light sources

420 lm
Max. number of luminaires per miniature circuit breaker B16

80
Max. number of luminaires per miniature circuit breaker C10

63
Max. number of luminaires per miniature circuit breaker C16

102
Protection class IK (shock resistance)

IK03
Mounting diameter

75 mm
Mounting depth

40 mm
