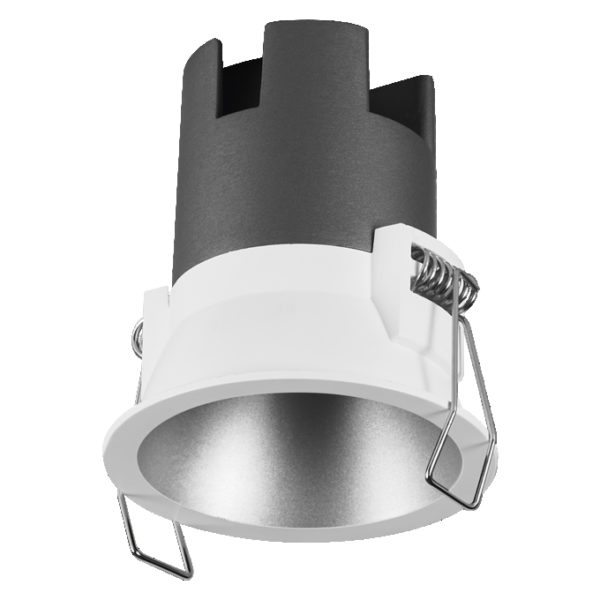

Spot Twist 70mm 5W 3000K White Silver

Spot Twist 70mm 5W 3000K White Silver

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854446214 Категория:
Product benefits
  • Energy savings of up to 90 % compared to halogen lamp spotlights
  • Easy installation and electrical connection thanks to tool-free electrical connectors
Areas of application
  • Indoor applications
  • General illumination
Product features
  • Silicon-pad protected springs
Equipment / Accessories
  • Connector box not included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854446214
Nominal wattage

5.00 W
Nominal voltage

220…240 V
Nominal current

50.000 mA
Luminous flux

400 lm
Luminous efficacy

80 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

≥80
Standard deviation of color matching

≤6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

30 °
Height

77.00 mm
Product weight

155.00 g
Product color

White, Silver
Housing color

White, Silver
Body material

Aluminum, Polycarbonate (PC)
Ambient temperature range

-10…+45 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screw terminal, 2-Pole (L,N)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

70.00 mm
Replaceable light source

No
Mounting type

Recessed
Protection class

II
Mercury content

0.0 mg
With light source

Yes
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

10 µs
Power factor λ

≥0.5
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

250
Max. number of luminaires per miniature circuit breaker C10

150
Max. number of luminaires per miniature circuit breaker C16

250
Protection class IK (shock resistance)

IK02
Photobiological safety group acc. to EN62471

RG1
Mounting diameter

65 mm
Mounting depth

100 mm
Output current

105 mA
ECG - Length

82 mm
ECG - Width

35 mm
ECG - Height

25 mm
