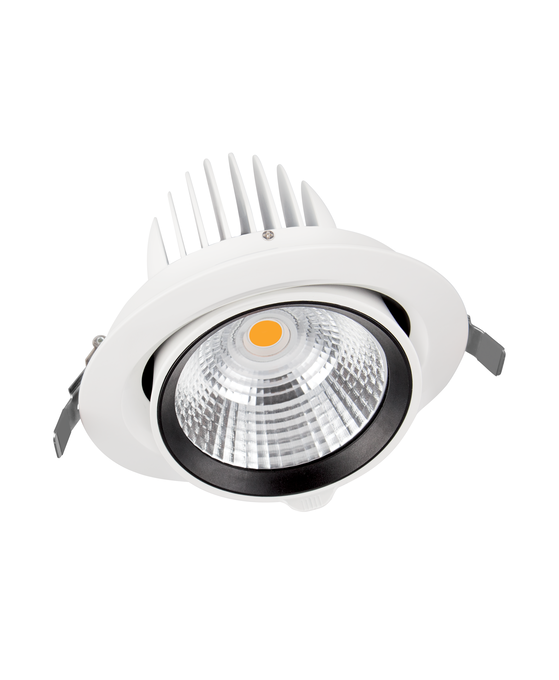

SPOT VARIO DN 170 35 W 3000 K 24DEG WT

SPOT VARIO DN 170 35 W 3000 K 24DEG WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075104020 Категория:
Product benefits
  • Low flicker light thanks to special electronic control gear
  • High luminous efficacy
  • Die-cast aluminum housing for improved heat dissipation
  • Easy replacement of external driver thanks to plug with bayonet lock
  • Design matches the LEDVANCE Spot-, Down- and Tracklight luminaire family
  • Shallow mounting depth
  • Various options to highlight target areas
  • 5 years guarantee
Areas of application
  • Accent- and general lighting for all kind of salesrooms
  • Retail
  • Supermarkets
  • Shops, boutiques
  • Hotel rooms
  • Stairways
  • Corridors
  • Lobbies
Product features
  • Large faceted reflector for high light output
  • Beam angle: 24°
  • Rotation angle: 0°…350°, tilt angle: 0°…35°
  • Diameter of required ceiling cut out: 165…170 mm
Equipment / Accessories
  • Driver included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
  • For Guarantee see
GTIN

4058075104020
Nominal wattage

35.00 W
Nominal voltage

220…240 V
Nominal current

850 mA
Luminous flux

3350 lm
Luminous efficacy

95 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

< 5 sdcm
Flickering metric (Pst LM)

—
Stroboscope effect metric (SVM)

—
Photobiological safety group acc. to EN62778

RG1
Beam angle

24 °
Height

129.00 mm
Product weight

1126.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+45 °C
Type of connection

Screw terminal, 2-Pole (L,N)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

180.00 mm
Replaceable light source

No
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

40 A
Inrush current time Th50

100 µs
Power factor λ

> 0.90
Total harmonic distortion

20 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Max. number of luminaires per miniature circuit breaker B16

15
Max. number of luminaires per miniature circuit breaker C10

9
Max. number of luminaires per miniature circuit breaker C16

15
Protection class IK (shock resistance)

IK03
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Luminous intensity

—
Lifespan L80/B10 at 25 °C

45000 h 1)
Adjustable

Yes
Mounting diameter

170 mm
Mounting depth

150 mm
ECG - Length

153 mm
ECG - Width

44 mm
ECG - Height

31 mm
Lifespan L90/B10 at 25 °C

30000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9016
