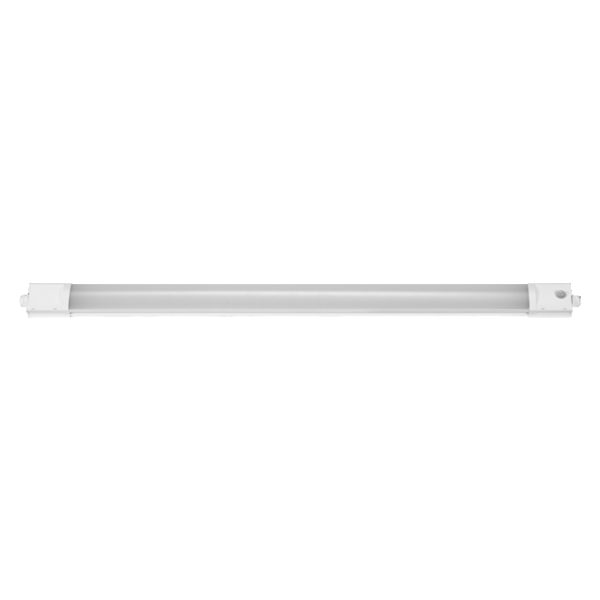

Submarine Integrated PRO Advanced 120 cm 36 W Thruwiring Sensor CCT Remote Control

Submarine Integrated PRO Advanced 120 cm 36 W Thruwiring Sensor CCT Remote Control

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854870910 Категория:
Product benefits
  • Easy installation and linking thanks to cover that can be simply opened​
  • Very homogenous light
Areas of application
  • Basements, garages, warehouses
Product features
  • LED integrated Damp-proof luminaire for mains voltage operation
  • Dust-protected and jet-proof (IP65)
  • PIR Motion sensor with adjustable detection parameters
  • Possibility to connect up to 20 luminaires
  • Light color selectable between 3000 K / 4000 K / 6500 K
  • Controllable via Remote Control
Equipment / Accessories
  • Complete mounting and connecting accessories included
  • Remote control and battery included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854870910
Nominal wattage

36.00 W
Nominal voltage

220…240 V
Nominal current

170.000 mA
Luminous flux

4320 lm
Luminous efficacy

120 lm/W
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

< 5 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

51.40 mm
Product weight

610.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-40…80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

40000 h 1)
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceiling
Protection class

II
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

50.8 A
Inrush current time Th50

104 µs
Power factor λ

> 0.5
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

4000 K
Total luminous flux of contained light sources

5000 lm
Max. number of luminaires per miniature circuit breaker B16

14
Max. number of luminaires per miniature circuit breaker C10

11
Max. number of luminaires per miniature circuit breaker C16

18
Protection class IK (shock resistance)

IK08
Length

1220.00 mm
Width

77.00 mm
Battery size [GMS]

CR2025
Type of sensor

Motion
Sensor technology

Passive infrared (PIR)
Sensor detection angle

120 °
Mounting height

3.5 m
