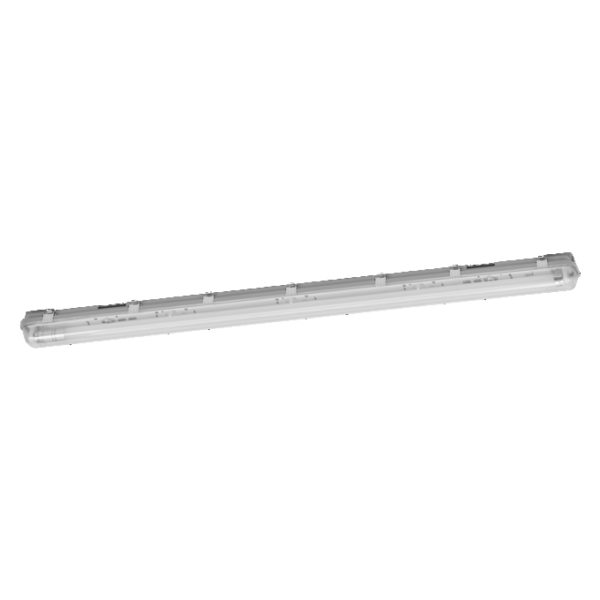

Submarine PRO Advanced 120 cm Sensor 19W 840

Submarine PRO Advanced 120 cm Sensor 19W 840

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854788956 Категория:
Product benefits
  • Enables energy savings and comfortable operation through sensor control
  • Up to 59 % more light
  • High quality and robust
  • Easy installation
  • Good, even illumination
Areas of application
  • Basements, garages, warehouses
Product features
  • Motion sensor (microwave technology) with adjustable detection parameters
  • Damp-proof luminaire with LED tube for mains voltage operation
  • Dust-protected and jet-proof (IP65)
  • OSRAM LED Tube T8 EM in Energy Label D class included
  • Robust, long-lasting metal clips​
  • Tool-free and easy to install via fast connector​
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854788956
Nominal wattage

19.00 W
Nominal voltage

220…240 V
Nominal current

100.000 mA
Luminous flux

2040 lm
Luminous efficacy

107 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

150 °
Height

76.00 mm
Product weight

1175.00 g
Product color

Grey
Housing color

Grey
Body material

Acrylonitrile butadiene styrene (ABS)
Ambient temperature range

-20…+35 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

15.6 A
Inrush current time Th50

1.73 µs
Power factor λ

> 0.70
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

2400 lm
Max. number of luminaires per miniature circuit breaker B16

48
Max. number of luminaires per miniature circuit breaker C10

38
Max. number of luminaires per miniature circuit breaker C16

61
Protection class IK (shock resistance)

IK06
Length

1261.00 mm
Width

64.00 mm
Product remark

Maximum tube wattage: 19 W
Type of sensor

Moti
Sensor technology

Microwave
Sensor detection angle

150 °
Detection range of motion sensor

4…10 m
Number of illuminants

1
Holder designation

G13
Sensor controlled switching time

5 s/1 min/3 min/10 min
Mounting height

2.5…4 m
