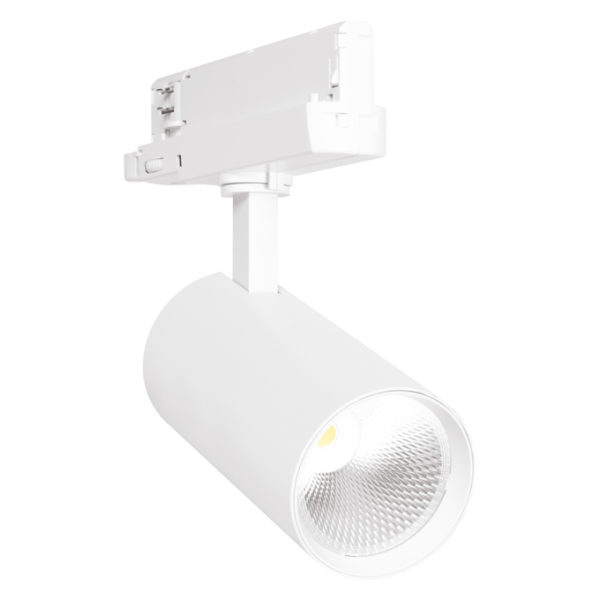

TR SP XR V 30W 924 24DEG WT BREAD

TR SP XR V 30W 924 24DEG WT BREAD

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854617089 Категория:
Product benefits
  • Specially tailored spectral distribution for food presentation only
  • Reflector easily replaceable thanks to bayonet catch and rubber suction pad
  • No distraction from the illuminated objects thanks to the reduced design
  • Low flicker light thanks to special electronic control gear
  • Good glare reduction (UGR ≤ 19)
Areas of application
  • Shops, supermarkets
  • Food presentation in e.g. butchers, bakeries, supermarkets or meat processors
  • Hotels, restaurants
Product features
  • Compact tracklight spot with in-track control gear
  • Rotation angle: 350°, tilt angle: 90°
  • Luminaire efficacy: up to 95 lm/W
  • Color rendering index CRI 90
  • Equipped with reflectors with 24° beam angle
  • Durable die-cast aluminum housing
  • Available in matt white (like RAL9003), matt black (like RAL9005)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854617089
Nominal wattage

30.00 W
Nominal voltage

220…240 V
Nominal current

136 mA
Luminous flux

2100 lm
Luminous efficacy

70 lm/W
Color temperature

2400 K
Light color (designation)

Warm White
Color rendering index Ra

> 90
Photobiological safety group acc. to EN62778

RG1
Beam angle

24 °
Height

240.00 mm
Product weight

620.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Adapter, 3-phase
Type of protection

IP20/IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

80.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Mounting track
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

0.72 A
Inrush current time Th50

51 µs
Power factor λ

> 0.90
Total harmonic distortion

< 15 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

94
Max. number of luminaires per miniature circuit breaker C10

58
Max. number of luminaires per miniature circuit breaker C16

94
Protection class IK (shock resistance)

IK02
Length

150.00 mm
Application environment

Indoor
Luminous intensity

2500 cd
Lifespan L80/B10 at 25 °C

35000 h 1)
Adjustable

Yes
UGR

< 20
Output current

750 mA
Lifespan L90/B10 at 25 °C

25000 h
Surge capability (L-N)

1000 V
Low flicker

Yes
RAL Color (most similar)

RAL 9003
ECG - Output ripple current

< 3 %
EPD

LEDV-00065-V01.01-EN
