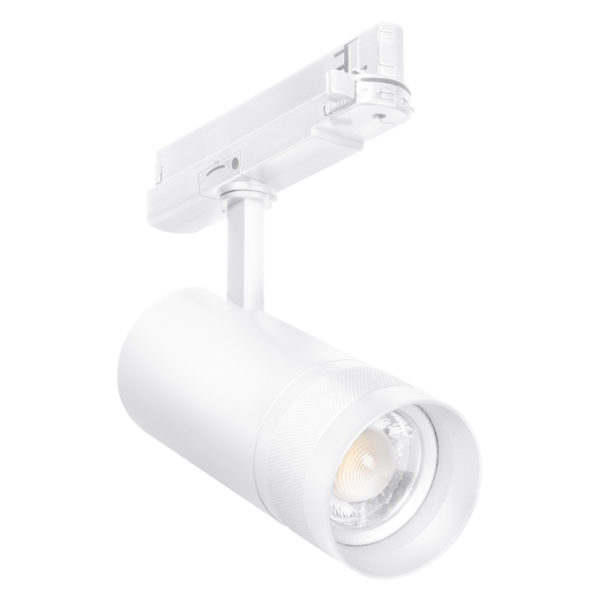

TR SP ZOOM DIM P 20W 93040 WT

TR SP ZOOM DIM P 20W 93040 WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854616181 Категория:
Product benefits
  • Dimmable 3-phase tracklight spot with mechanical zoom lense
  • No distraction from the illuminated objects thanks to the reduced design
  • Low flicker light thanks to special electronic control gear
Areas of application
  • Direct replacement for luminaires using HID lamps
  • Accent lighting
  • Galleries, museums
  • Shops, changing rooms, shop windows
  • Hotels, restaurants
Product features
  • Multi Color function: 3000 K and 4000 K
  • Mechanical zoom lens with a beam angle of 21° to 50°
  • Dimmable (3% — 100%) via potentiometer directly on each luminaire
  • Color rendering index CRI 90
  • Initial color consistency: ≤ 3 SDCM
  • Rotation angle: 350°, tilt angle: 90°
  • Durable die-cast aluminum housing
  • Available in matt white (like RAL9003), matt black (like RAL9005)
  • Luminaire efficacy: up to 120 lm/W
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • For Guarantee see
GTIN

4099854616181
Nominal wattage

20.00 W
Nominal voltage

220…240 V
Nominal current

91 mA
Luminous flux

1600 lm / 1300 lm 1)
Luminous efficacy

80 lm/W / 65 lm/W 2)
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 90
Standard deviation of color matching

≤3 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG1
Beam angle

21 °…50 °
Height

256.00 mm
Product weight

720.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Adapter, 3-phase
Type of protection

IP20/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

72.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Mounting track
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

0.56 A
Inrush current time Th50

49 µs
Power factor λ

> 0.90
Total harmonic distortion

< 15 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

140
Max. number of luminaires per miniature circuit breaker C10

87
Max. number of luminaires per miniature circuit breaker C16

140
Protection class IK (shock resistance)

IK03
Length

189.00 mm
Type of dimming

1-10V
Application environment

Indoor
Luminous intensity

1650 cd
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

35000 h 1)
Adjustable

Yes
UGR

< 23
Output current

500 mA
Lifespan L90/B10 at 25 °C

25000 h
Surge capability (L-N)

1000 V
Surge capability (L/N-Ground)

2000 V
Low flicker

Yes
RAL Color (most similar)

RAL 9003
ECG - Output ripple current

< 3 %
EPD

LEDV-00066-V01.01-EN
