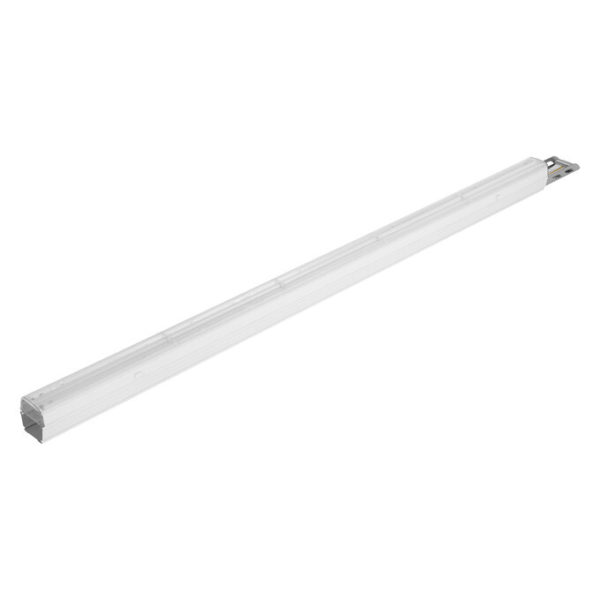

TruSys® PFM DS 50 W/4000 K

TruSys® PFM DS 50 W/4000 K

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075398795 Категория:
Product benefits
  • Double directed light distribution for shelf illumination
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
  • Rows of up to 57 luminaires possible
Areas of application
  • Direct replacement for luminaires with compact fluorescent lamps
  • Industry halls, high rack warehouse, garages, hardware stores
  • Discounters, supermarkets
Product features
  • Beam angle double asymmetric: 2×30°
  • Click into place solution with smart click buttons
  • Luminous efficacy: up to 160 lm/W
  • Fixed luminare taps
  • Lumen package 5600 lm, 8000 lm, 11200 lm
  • Steel-sheet housing
  • Lens material: PMMA
  • Type of protection: IP20
  • Common family design with LEDVANCE
  • Lifetime (L80/B10): up to 60,000 h
Equipment / Accessories
  • Mounting rail with fixed integrated 5- and 8-pole cable
GTIN

4058075398795
Nominal wattage

50.00 W
Nominal voltage

220…240 V
Nominal current

270 mA
Luminous flux

8000 lm
Luminous efficacy

160 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

≤3 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

2 x 30 °
Height

39.40 mm
Product weight

1660.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-25…+40 °C
Type of connection

Plug-In connection
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

65000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Suspended/Surface
Mounting location

Mounting rail
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Mains frequency

50…60 Hz
Inrush current

30 A
Inrush current time Th50

265 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

8
Max. number of luminaires per miniature circuit breaker C10

8
Max. number of luminaires per miniature circuit breaker C16

13
Protection class IK (shock resistance)

IK04
Length

1500.00 mm
Width

66.80 mm
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Lifespan L80/B10 at 25 °C

60000 h 1)
Number of illuminants

—
Light emitting surface material

PMMA
UGR

21
Output current

620 mA
Lifespan L90/B10 at 25 °C

50000 h
Low flicker

Yes
ECG - Output ripple current

< 20 %
