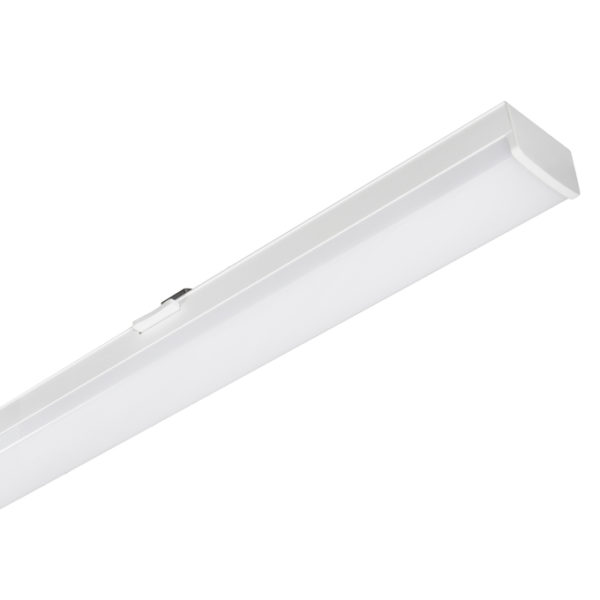

TRUSYS UNIV P 50W 840 VW OP PS

TRUSYS UNIV P 50W 840 VW OP PS

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854496561 Категория:
Product benefits
  • The solution for refurbishment: universal fitting to existing trunking luminaire system
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Industry halls, high rack warehouse, hardware stores
  • Discounters, supermarkets
Product features
  • Multi Lumen function: lumen steps selectable
  • Beam angles: 120° (VW), 90° (W), 60° (N), 30° (VN)
  • Click into place solution with smart click buttons
  • Luminous efficacy: up to 185 lm/W
  • Lifetime (L80/B10): up to 100,000 h (at 25 °C)
  • Initial color consistency: ≤ 3 SDCM
Equipment / Accessories
  • Various accessories available
References / Links
  • For Guarantee see
GTIN

4099854496561
Nominal wattage

50 W / 40 W / 30 W / 20 W
Nominal voltage

220…240 V
Nominal current

230mA / 180mA / 135mA / 90 mA
Luminous flux

8150 lm / 6600 lm / 5040 lm / 3300 lm
Luminous efficacy

163 lm/W / 165 lm/W / 168 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

< 3 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

120 °
Height

35.00 mm
Product weight

1570.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-40…+80 °C
Type of connection

Plug-In connection
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

120000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), N,N-Dimethylformamide (68-12-2)
Mounting type

Surface/Suspended
Mounting location

Mounting rail
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

22.6 A
Inrush current time Th50

247 µs
Power factor λ

≥0.90
Total harmonic distortion

< 15 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

14
Max. number of luminaires per miniature circuit breaker C10

13
Max. number of luminaires per miniature circuit breaker C16

21
Protection class IK (shock resistance)

IK02
Length

1504.00 mm
Width

68.00 mm
Application environment

Indoor
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

100000 h 1)
Adjustable

No
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

8150 lm
Output current

500mA / 400mA / 300mA / 200 mA
Lifespan L90/B10 at 25 °C

54000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

50 W
ECG - Output ripple current

< 5 %
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation included
EPD

LEDV-00033-V01.01-EN
20 W

165 lm/W
30 W

168 lm/W
40 W

165 lm/W
50 W

163 lm/W
