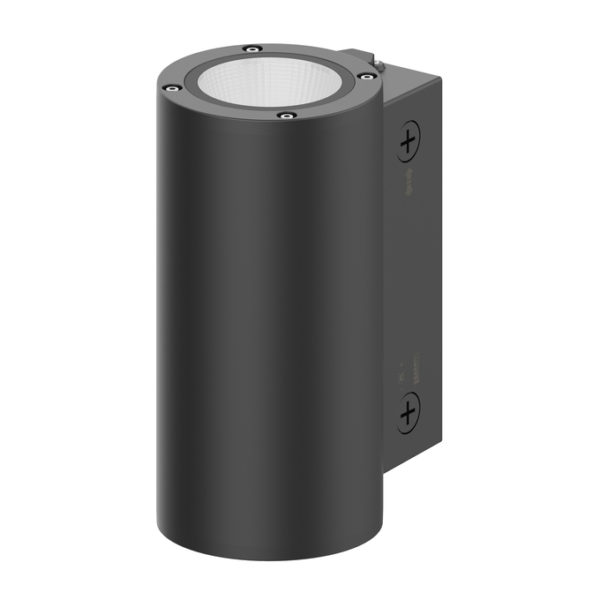

UB WALL VARIO DA RD P 27W 83040 BK

UB WALL VARIO DA RD P 27W 83040 BK

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854659843 Категория:
Product benefits
  • Highly versatile luminaire with all-in-one feature-set to serve many lighting tasks
  • Great industrial design thanks to its closed and sleek design
  • Durable and robust made from high-quality materials, suitable for outdoor use, even in harsh environmental conditions
  • Energy efficient thanks to selectable lumen steps and daylight detection (not DALI types)
Areas of application
  • Outdoor use (IP65)
  • Wall mounting
  • Facade lighting
  • Hotel entrance area
  • Pathway lighting
  • Commercial, industrial and residential areas
Product features
  • Multi Color: 2 different color temperatures selectable via integrated switch
  • Selectable light emission (upward and/or downward) via integrated switch
  • Beam angle select via interchangeable reflectors: wide beam 55° (pre-installed) / narrow beam 30° (accessory included)
  • Type of protection: IP65
  • Corrosion resistance C4 based on 1,000 hours salt mist spray test
  • Integrated breather for preventing condensation inside the luminaire
  • Available in housing colors: grey (like RAL7022) and black (like RAL9017)
  • Luminaire versions available with on-off or IoT-ready DALI-2 driver
Equipment / Accessories
  • Interchangeable reflectors with narrow beam angle (30°) are included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • For Guarantee see
GTIN

4099854659843
Nominal wattage

27.00 W 1)
Nominal voltage

220…240 V
Nominal current

120.000 mA
Luminous flux

2700 lm 1)
Luminous efficacy

100 lm/W 1)
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

≤3 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG1
Beam angle

55 °
Height

254.00 mm
Product weight

2700.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-20…+45 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection

IP65
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), Tripnehyl Phosphate (115-86-6), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) — (3147-75-9)
Mounting type

Surface
Mounting location

Wall
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Tempered glass
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

35.6 A
Inrush current time Th50

2.48 µs
Power factor λ

> 0.9
Total harmonic distortion

< 20 %
Operating mode

Electronic control gear (ECG)
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Only by an expert
Max. number of luminaires per miniature circuit breaker B16

21
Max. number of luminaires per miniature circuit breaker C10

16
Max. number of luminaires per miniature circuit breaker C16

26
Protection class IK (shock resistance)

IK08
Length

170.00 mm
Width

120.00 mm
Type of dimming

DALI-2
Application environment

Outdoor
Luminous intensity

1850 cd
Added function

MULTI SELE
Lifespan L80/B10 at 25 °C

100000 h 1)
Output current

700 mA
Lifespan L90/B10 at 25 °C

100000 h
Surge capability (L-N)

1000 V
RAL Color (most similar)

RAL 9017
Corrosion resistance class acc. to EN 12944

C4
27W

100lm/W
