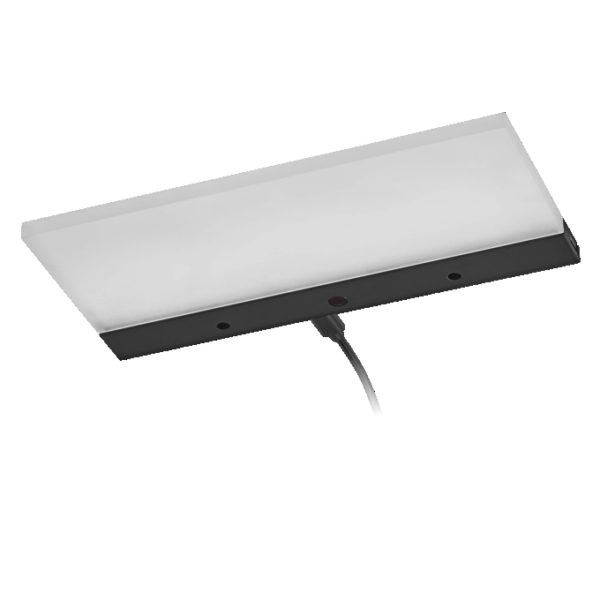

Undercabinet Acrylux Panel 5.4W CCT DIM Starter Kit

Undercabinet Acrylux Panel 5.4W CCT DIM Starter Kit

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854628306 Категория:
Product benefits
  • Particularly pleasant lighting atmosphere due to illumination of the acrylic glass
  • Order adjustable to individual needs
  • Easy and quick series connection thanks to simple plug system
  • Connection of up to 3 luminaires in a row via the enclosed connector for seamless connection or via enclosed connector cable for greater distances
  • Highly versatile due to selectable color
Areas of application
  • Kitchens, Living areas, Shelf and undercabinet lighting
Product features
  • Design orientated undercabinet illumination
  • Color temperature adjustable in two steps
  • Switch on and off and color change by movements with max. 5 cm distance in front of the infrared motion sensor
  • Dimming by covering the infrared motion sensor for at least one second
  • Easy and fast mounting on nearly every surface via adhesive tape or alternative via enclosed screws in case a stronger mounting is needed
  • Lifetime up to 30,000 h
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
GTIN

4099854628306
Nominal wattage

5.40 W
Nominal voltage

220…240 V
Nominal current

45.000 mA
Luminous flux

300 lm
Luminous efficacy

55 lm/W
Color temperature

2700 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG0
Height

7.00 mm
Product weight

250.00 g
Product color

Black
Housing color

Black
Body material

Aluminum, polymethylmethacrylate (PMMA)
Ambient temperature range

-20…+40 °C
Type of connection

Plug type C (EU)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h 1)
Standards

CE
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Protection class

II
Mercury content

0.0 mg
Type of emergency operation test

None
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Inrush current

6.9 A
Inrush current time Th50

192 µs
Power factor λ

≥0.5
Total harmonic distortion

< 70 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

2700 K
Total luminous flux of contained light sources

420 lm
Max. number of luminaires per miniature circuit breaker B16

55
Max. number of luminaires per miniature circuit breaker C16

74
Length

200.00 mm
Width

100.00 mm
Type of sensor

Motion
Sensor technology

Infrared/Photocell
Number of illuminants

Not relevant
