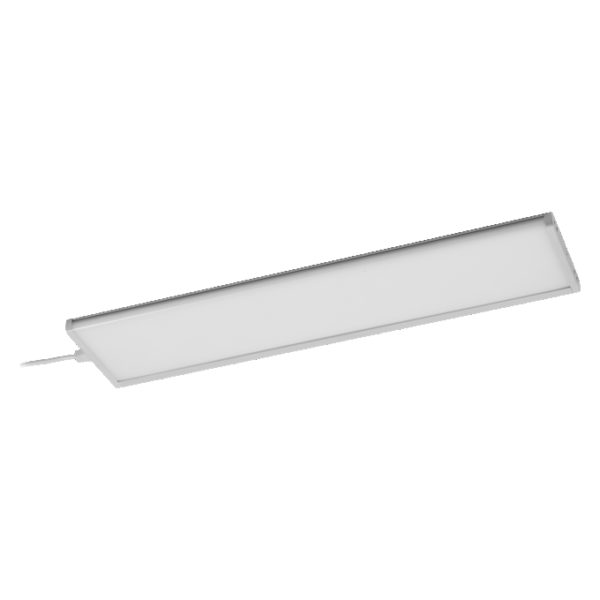

Undercabinet Lineaflex 360mm 4.2W CCT DIM Extension

Undercabinet Lineaflex 360mm 4.2W CCT DIM Extension

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854628184 Категория:
Product benefits
  • Lighting of large areas possible, even across corners
  • Easy and quick series connection thanks to simple plug system
  • Connection of luminaires in a row via the enclosed connector for seamless connection or via enclosed connector cable for greater distances
  • Products of the LineaFlex family can be mixed according to individual needs
  • Highly versatile due to selectable color
Areas of application
  • Kitchens, Living areas, Shelf and undercabinet lighting
Product features
  • Low voltage luminaire for DC operation with external driver
  • Color temperature adjustable in two steps
  • Switch on and off and color change by movements with max. 5 cm distance in front of the infrared motion sensor
  • Dimming by covering the infrared motion sensor for at least one second
  • Easy and fast mounting on nearly every surface (adhesive tape)
  • Available length: 360 mm or 540 mm
  • Lifetime up to 30,000 h
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
GTIN

4099854628184
Nominal wattage

4.20 W
Nominal voltage

24 V
Nominal current

175.000 mA
Luminous flux

380 lm
Luminous efficacy

90 lm/W
Color temperature

2700 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG0
Height

12.00 mm
Product weight

310.00 g
Product color

White
Housing color

White
Body material

Aluminium, Acrylonitrile butadiene styrene (ABS)
Ambient temperature range

-20…+40 °C
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h 1)
Standards

CE
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Protection class

III
Mercury content

0.0 mg
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Power factor λ

1.00
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

2700 K
Total luminous flux of contained light sources

500 lm
Length

360.00 mm
Width

90.00 mm
Number of illuminants

Not relevant
