Undercabinet Triangle 11.5 W CCT DIM Silver

Undercabinet Triangle 11.5 W CCT DIM Silver

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854856280 Категория:
Product benefits
  • Easy and quick series connection thanks to simple plug system
  • Highly versatile due to selectable color
Areas of application
  • Kitchens, Living areas, Shelf and undercabinet lighting
Product features

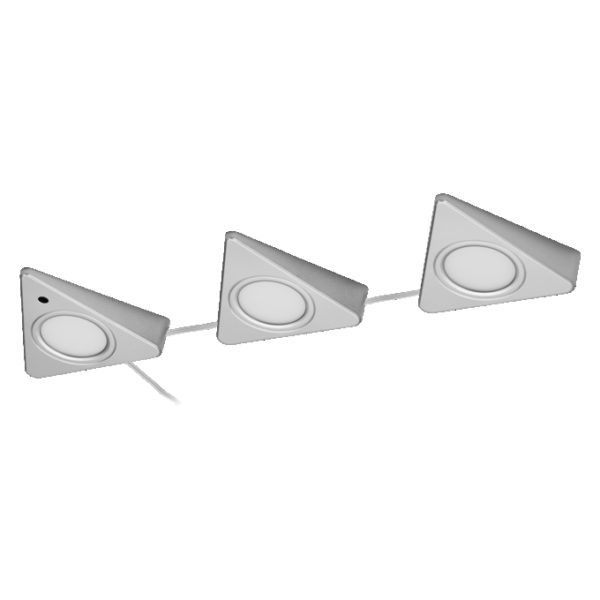

  • Triangular undercabinet luminaire in a classic design in a 3-pack
  • Color temperature adjustable in two steps
  • Switch on and off and color change by movements with max. 5 cm distance in front of the infrared motion sensor
  • Dimming by covering the infrared motion sensor for at least one second
  • Lifetime up to 30,000 h
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
GTIN

4099854856280
Nominal wattage

11.50 W
Nominal voltage

220…240 V
Nominal current

77 mA
Luminous flux

630 lm
Luminous efficacy

54 lm/W
Color temperature

2700 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

35.00 mm
Product weight

390.00 g
Product color

Silver
Housing color

Silver
Body material

Acrylonitrile butadiene styrene (ABS)
Ambient temperature range

-20…+40 °C
Type of connection

Plug type C (EU)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h 1)
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Protection class

II
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

16.6 A
Inrush current time Th50

144 µs
Power factor λ

> 0.5
Total harmonic distortion

130 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

4000 K
Total luminous flux of contained light sources

1170 lm
Max. number of luminaires per miniature circuit breaker B16

31
Max. number of luminaires per miniature circuit breaker C10

28
Max. number of luminaires per miniature circuit breaker C16

36
Length

130.00 mm
Width

125.00 mm
Type of dimming

PWM
Type of sensor

Motion
Sensor technology

Infrared/Photocell
Sensor detection angle

90 °
Detection range of motion sensor

0.05 m
