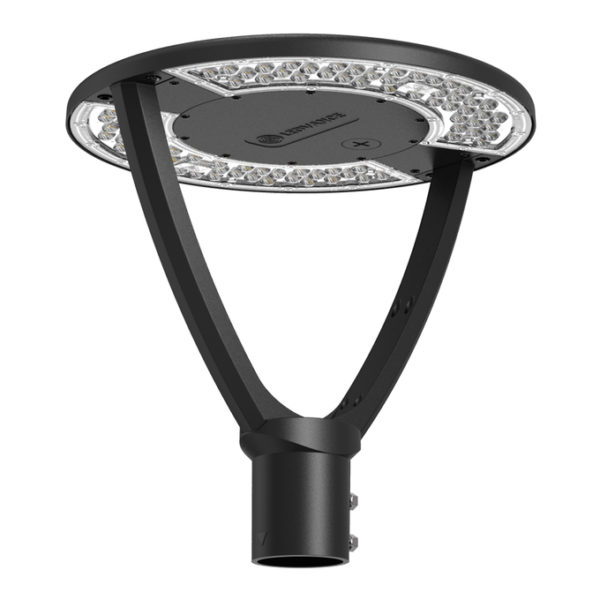

URB LTRN V 29W ASYM PS 830-840 IP66 BK

URB LTRN V 29W ASYM PS 830-840 IP66 BK

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854246784 Категория:
Product benefits
  • Highly versatile due to selectable CCT and lumen steps (Multi Select)
  • Low flicker light thanks to special electronic control gear
  • Energy savings thanks to system efficacy of up to 139 lm/W
  • Bright, robust and durable
Areas of application
  • Replacement for luminaires with mercury vapor or metal halide lamps
  • Streets
  • Pedestrian zones
  • Parks
  • Public areas
Product features
  • Protection class: II
  • Lifetime (L80/B10): up to 100,000 h (at 25 °C)
  • Type of protection: IP66
  • Impact resistance: IK10
  • Asymmetric light distribution
References / Links
  • For Guarantee see
GTIN

4099854246784
Nominal wattage

29 W / 25 W / 20.0 W / 15 W 1)
Nominal voltage

220…250 V
Nominal current

70-90-110-130 mA
Luminous flux

3945 lm / 3400 lm / 2720 lm / 2040 lm 1)
Luminous efficacy

136 lm/W 1)
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

80
Standard deviation of color matching

5 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

165° x 65 °
Height

417.00 mm
Product weight

4155.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-30…+50 °C
Temperature range at storage

-35…+80 °C
Type of connection

Cable, 3-pole
Type of protection

IP66
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

395.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Post top
Mounting location

Pole
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

25.8 A
Inrush current time Th50

330 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

750 °C
Max. number of luminaires per miniature circuit breaker B16

8
Max. number of luminaires per miniature circuit breaker C10

8
Max. number of luminaires per miniature circuit breaker C16

13
Protection class IK (shock resistance)

IK10
Application environment

Outdoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

100000 h 1)
Cable length

250 mm
Adjustable

No
Light emitting surface material

Polycarbonate (PC)
Output current

1490…1240…1060…850 mA
Lifespan L90/B10 at 25 °C

68000 h
Surge capability (L-N)

6 kV
Low flicker

Yes
RAL Color (most similar)

RAL 9017
ECG - Output ripple current

< 20 %
EPD

LEDV-00041-V01.01-EN
