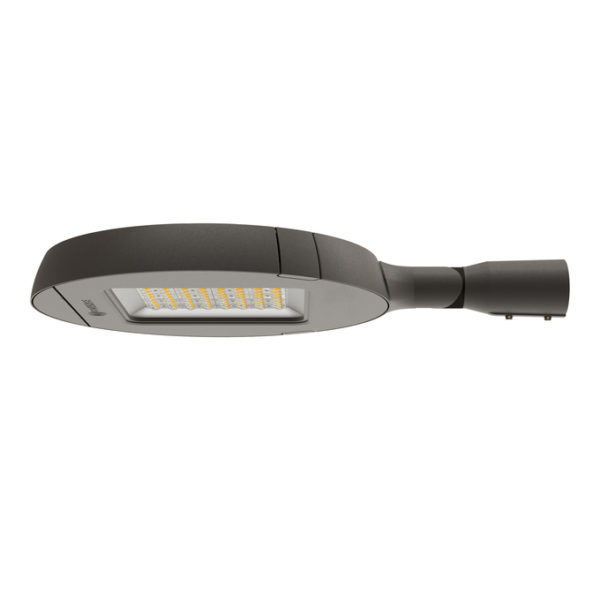

URBAN FLEX STREET S6 080W 740 RW45ST 1DIM NO CABLE UMBRA GREY CLASS 2

URBAN FLEX STREET S6 080W 740 RW45ST 1DIM NO CABLE UMBRA GREY CLASS 2

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854795978 Категория:
Product benefits
  • 7 years guarantee
  • Durable design and highest quality component selection for long lasting performance
  • Corrosion resistance C4: suitable for use in environments with moderate salinity
  • Automatic mains disconnection when opening the housing
  • 5 light colors available, perfectly suited to illuminate highly diverse surroundings
  • ZHAGA standardized PCB
  • ZHAGA type of connection for controllers and sensors
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
Areas of application
  • Outdoor applications
  • Public areas
  • City roads, industrial roads, parking lots
  • Avenues and promenades
  • Pedestrian crossings
  • Parks
  • M-, C- and P-class roads acc. to EN 13201
Product features
  • Modern minimalistic design
  • Very long lifetime (L90/B10): Up to 100,000 h (at 25 °C)
  • Impact resistance: IK10
  • Protection rating: IP66
  • Luminous efficacy: up to 180 lm/W
  • 10 KV surge protection, with replaceable SPD
  • Operating temperature: -40…50 °C
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854795978
Nominal wattage

80.00 W
Nominal voltage

220…240 V
Nominal current

350.000 mA
Luminous flux

14060 lm
Luminous efficacy

176 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

70
Standard deviation of color matching

< 5 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG1
Beam angle

156 ° x 61 °
Height

105.00 mm
Product weight

9950.00 g
Product color

Umbra grey
Housing color

Umbra grey
Body material

Aluminum 1)
Ambient temperature range

-40…+50 °C
Temperature range at storage

-40…+80 °C
Type of connection

Screwless terminal, 2-Pole (L, N)
Type of protection

IP66
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) — (3147-75-9)
Mounting type

Side entry, post top
Mounting location

Pole
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Glass
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

48.5 A
Inrush current time Th50

208 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Only by an expert
Max. number of luminaires per miniature circuit breaker B16

7
Max. number of luminaires per miniature circuit breaker C10

6
Max. number of luminaires per miniature circuit breaker C16

10
Protection class IK (shock resistance)

IK10
Photobiological safety group acc. to EN62471

RG1
Length

754.00 mm
Width

506.00 mm
Application environment

Outdoor
Product remark

Available from June 20
Lifespan L80/B10 at 25 °C

100000 h 1)
Adjustable

Yes
Light emitting surface material

Glass
Output current

860 mA
Lifespan L90/B10 at 25 °C

100000 h
Surge capability (L-N)

10 kV
Low flicker

Yes
RAL Color (most similar)

RAL 7022
ECG - Output ripple current

< 15 %
Corrosion resistance class acc. to EN 12944

C4
