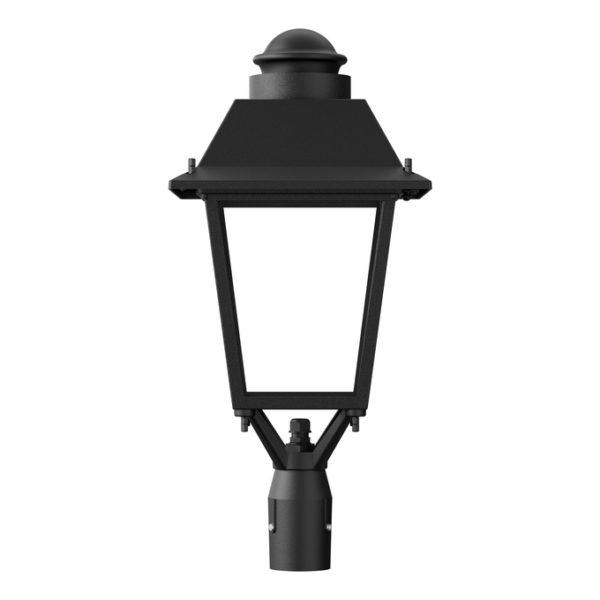

URBAN VLA COMP V 40W 740 A45x140

URBAN VLA COMP V 40W 740 A45x140

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854609534 Категория:
Product benefits
  • Durable design and highest quality component selection for long lasting performance
  • Quick and easy wiring, due to tool-free housing opening and push button terminal
  • High light uniformity
  • 3 light colors available, perfectly suited to illuminate highly diverse surroundings
Areas of application
  • Outdoor use (IP66)
  • Parks
  • City center
  • Historical center
Product features
  • Very long lifetime (L70): up to 100,000 h (at 25 °C)
  • 1000 hours salt mist spray test
  • Corrosion-resistant powder coating
  • Spigot for 60 mm poles included
  • DALI D4i drivers for smart city applications
  • Operating temperature: -20…45 °C
  • High surge protection: up to 20 kV (L/N-GND)
  • Type of protection: IP66
  • Protection class: II
Equipment / Accessories
  • Frosted glass available as separate accessory
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • For Guarantee see
GTIN

4099854609534
Nominal wattage

40.00 W
Nominal voltage

220…240 V
Nominal current

179.000 mA
Luminous flux

5000 lm
Luminous efficacy

125 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 70
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

45 ° x 140 °
Height

645.00 mm
Product weight

5100.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-20…+45 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screw terminal
Type of protection

IP66
Dimmable

Yes 1)
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) — (3147-75-9)
Mounting type

Post top
Mounting location

Pole
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

18.7 A
Inrush current time Th50

830 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

7
Max. number of luminaires per miniature circuit breaker C10

8
Max. number of luminaires per miniature circuit breaker C16

12
Protection class IK (shock resistance)

IK08
Photobiological safety group acc. to EN62471

RG1
Length

300.00 mm
Width

300.00 mm
Type of dimming

DALI D4i
Application environment

Outdoor
Added function

VIVARES
Lifespan L80/B10 at 25 °C

70000 h 1)
Output current

200…1050 mA
Lifespan L90/B10 at 25 °C

70000 h
Dimming range

10…100 %
Low flicker

Yes
RAL Color (most similar)

RAL 9005
ECG - Output ripple current

5 %
IoT ready

Support of DALI data type PART 251, 252, 253 2)
EPD

LEDV-00071-V01.01-EN
ECG - Output voltage

19…57 V
