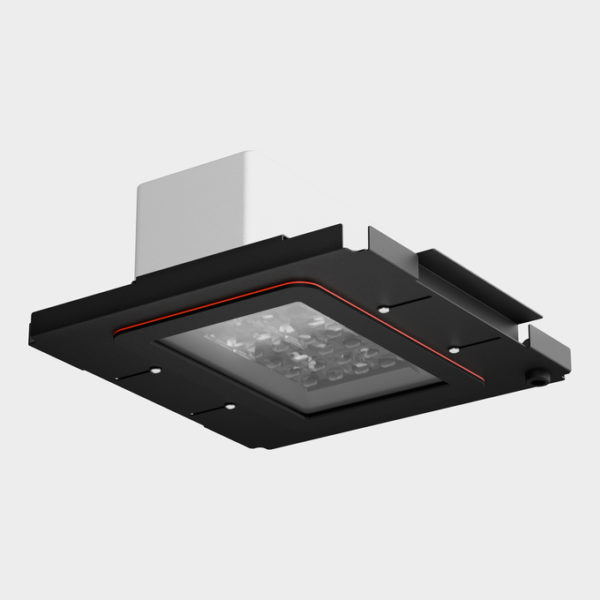

URBAN VLA RET P 60W 722 A50X150

URBAN VLA RET P 60W 722 A50X150

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854609442 Категория:
Product benefits
  • Durable design and highest quality component selection for long lasting performance
  • Quick and easy wiring, due to tool-free housing opening and push button terminal
  • High light uniformity
  • 2 light colors available, perfectly suited to illuminate highly diverse surroundings
Areas of application
  • Outdoor use (IP66)
  • Parks
  • City center
  • Historical center
Product features
  • Very long lifetime (L70): up to 100,000 h (at 25 °C)
  • 1000 hours salt mist spray test
  • Corrosion-resistant powder coating
  • DALI D4i drivers for smart city applications
  • Operating temperature: -20…45 °C
  • High surge protection: up to 20 kV (L/N-GND)
  • Type of protection: IP66
  • Protection class: II
References / Links
  • For Guarantee see
GTIN

4099854609442
Nominal wattage

60.00 W
Nominal voltage

220…240 V
Nominal current

274.000 mA
Luminous flux

7200 lm
Luminous efficacy

120 lm/W
Color temperature

2200 K
Light color (designation)

Warm White
Color rendering index Ra

> 70
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

50° x 150 °
Height

134.00 mm
Product weight

4380.00 g
Product color

Black
Housing color

Black
Body material

Steel
Ambient temperature range

-20…+45 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screw terminal
Type of protection

IP66
Dimmable

Yes 1)
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) — (3147-75-9)
Mounting type

Post top
Mounting location

Pole
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

45.9 A
Inrush current time Th50

128 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

22
Max. number of luminaires per miniature circuit breaker C10

22
Max. number of luminaires per miniature circuit breaker C16

36
Protection class IK (shock resistance)

IK08
Photobiological safety group acc. to EN62471

RG1
Length

320.00 mm
Width

320.00 mm
Type of dimming

DALI D4i
Application environment

Outdoor
Added function

VIVARES
Lifespan L80/B10 at 25 °C

70000 h 1)
Output current

200…1050 mA
Lifespan L90/B10 at 25 °C

70000 h
Dimming range

10…100 %
Low flicker

Yes
RAL Color (most similar)

RAL 9005
ECG - Output ripple current

5 %
IoT ready

Support of DALI data type PART 251, 252, 253 2)
EPD

LEDV-00070-V01.01-EN
ECG - Output voltage

36…114 V
