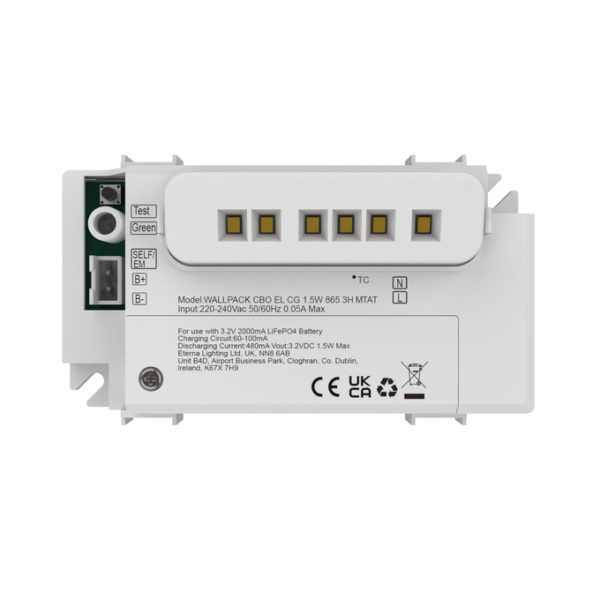

WALLPACK CBO EL CG 1.5W 865 3H MTAT

WALLPACK CBO EL CG 1.5W 865 3H MTAT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854668111 Категория:
Product benefits
  • Plug & Upgrade concept to extend the On/Off luminaire to an emergency luminaire
  • Easy testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Easy Plug & Upgrade concept for WALLPACK COMBO
Areas of application
  • Suitable for WALLPACK COMBO
Product features
  • Emergency lighting function: battery discharge time of 3 h
  • Operation mode: maintained (M) or non-maintained (NM)
  • Type of protection: IP20
  • Ambient temperature in operation: 0…+40 °C
Equipment / Accessories
  • Battery included
  • Mounting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854668111
Nominal wattage

1.50 W
Nominal voltage

220…240 V
Nominal current

0.15 mA
Luminous flux

269 lm / 150 lm
Color temperature

6500 K
Light color (designation)

Cool Daylight
Color rendering index Ra

>80
Standard deviation of color matching

< 5 sdcm
Flickering metric (Pst LM)

< 1
Photobiological safety group acc. to EN62778

RG1
Height

34.00 mm
Product weight

122.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

0…+40 °C
Temperature range at storage

-40…+80 °C
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

60000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), Cadmium (7440-43-9)
Protection class

II
Ball shot safe

No
Type of emergency operation test

Test button
Cover material

Polycarbonate (PC)
Mains frequency

50…60 Hz
Glow Wire Test according to IEC 60695-2-12

850 °C
Length

119.00 mm
Width

69.00 mm
Battery size [GMS]

Others
Type of Battery

LiFePO4
Nominal voltage of battery

3.2 V
Added function

PLUG & UPGRADE
Lifespan L80/B10 at 25 °C

50000 h 1)
Luminous flux in emergency operation mode

269 lm
Battery life in emergency operation mode

3 h
UGR

< 30
Low flicker

Yes
RAL Color (most similar)

RAL 9001
Wattage in emergency operation mode

1.5 W
Wattage in maintained operation mode

1.5 W
