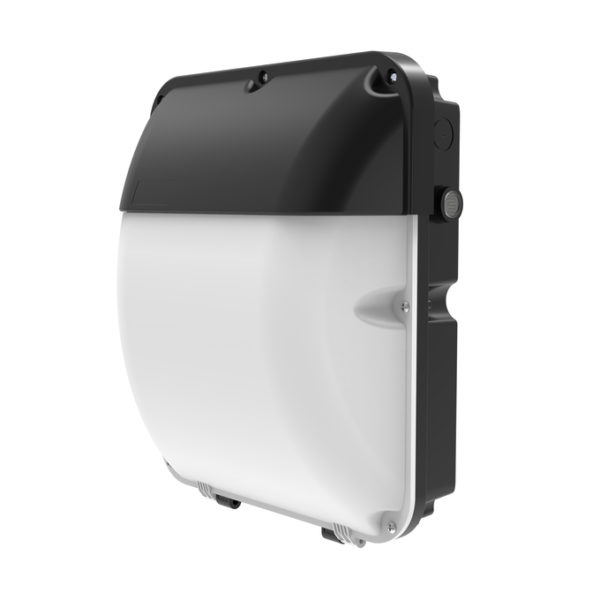

WALLPACK CBO PH V 25W ML 84065 IP65

WALLPACK CBO PH V 25W ML 84065 IP65

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854668098 Категория:
Product benefits
  • Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
  • Plug & Upgrade concept to extend the On/Off luminaire to an emergency luminaire
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Separate decor element available for an aesthetic and functional product design
Areas of application
  • Outdoor
  • Loading docks
  • Facade lighting
Product features
  • Integrated photocell sensor
  • High luminous efficacy: up to 106 lm/W
  • Type of protection: IP65
  • Impact resistance: IK08
  • Ambient temperature in operation: -20…+50 °C
Equipment / Accessories
  • Plug & Upgrade emergency kit separately available
  • Mounting screws and dowels included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854668098
Nominal wattage

25 W / 19 W
Nominal voltage

220…240 V
Nominal current

128mA / 100 mA
Luminous flux

2640 lm / 1980 lm
Luminous efficacy

106 lm/W / 104 lm/W
Color temperature

6500 K / 4000 K
Light color (designation)

Cool Daylig
Color rendering index Ra

> 80
Standard deviation of color matching

< 5 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG1
Beam angle

110 °
Height

124.00 mm
Product weight

1032.00 g
Product color

Black
Housing color

Black
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+50 °C
Temperature range at storage

-40…+80 °C
Type of connection

Push-in
Type of protection

IP65/IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

60000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), Cadmium (7440-43-9)
Mounting type

Wall mounting
Mounting location

Wall
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

9 A
Inrush current time Th50

190 µs
Power factor λ

> 0.70
Total harmonic distortion

< 60 %
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

42
Max. number of luminaires per miniature circuit breaker C10

35
Max. number of luminaires per miniature circuit breaker C16

57
Protection class IK (shock resistance)

IK08
Length

280.00 mm
Width

314.00 mm
Application environment

Outdoor
Added function

MULTI SELE
Lifespan L80/B10 at 25 °C

50000 h 1)
Type of sensor

Photocell
Sensor technology

Photocell
Luminous flux in emergency operation mode

150 lm
UGR

< 30
Output current

225mA / 176 mA
Lifespan L90/B10 at 25 °C

40000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9005
Wattage in emergency operation mode

1.5 W
ECG - Output ripple current

< 36 %
Type of Emergency Lighting (EL)

Optional EL unit (battery and controller) for decentral operation available separately
25 W

106 lm/W
19 W

104 lm/W
