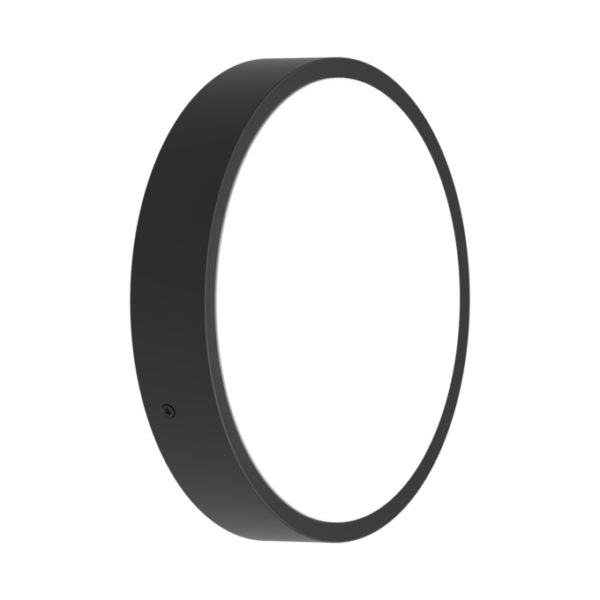

BLKH RD SN 250 P 10W ML 83040 BK

BLKH RD SN 250 P 10W ML 83040 BK

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854286162 Категория:
Product benefits
  • Multiple adjustments of sensor range, daylight detection and hold time
  • Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
  • Flexible mounting patterns for convenient installation
  • Suitable for use in public areas thanks to high IK rating
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in emergency lighting systems (DC capable)
  • Separate decor element available for an aesthetic and functional product design
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors, stairways, entrance areas
  • Passages, underpasses
  • Public areas
Product features
  • High frequency sensor for daylight and motion detection
  • UV-stabilized polycarbonate (PC) housing, PC-diffuser
  • High luminous efficacy: > 120 lm/W for 3000 K and 4000 K
  • Impact resistance: IK10
  • Type of protection: IP65
  • Push wire terminal for tool-free connection
  • Through-wiring possible
Equipment / Accessories
  • Additional cover rings in different designs available
  • Mounting screws and dowels included
  • Anti-theft screw included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854286162
Nominal wattage

10 W / 8.5 W / 7 W / 6 W 1)
Nominal voltage

220…240 V
Nominal current

46…41…35…30 mA
Luminous flux

1220 lm / 1070 lm / 860 lm / 710 lm 1)
Luminous efficacy

122 lm/W / 120 lm/W / 118 lm/W 1)
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

5 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

73.00 mm
Product weight

720.00 g
Product color

Black
Housing color

Black
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

70000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

262.00 mm
Replaceable light source

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceili
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

3.44 A
Inrush current time Th50

3.284 µs
Power factor λ

> 0.70
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Only by an expert
Max. number of luminaires per miniature circuit breaker B16

224
Max. number of luminaires per miniature circuit breaker C10

140
Max. number of luminaires per miniature circuit breaker C16

224
Protection class IK (shock resistance)

IK10
Application environment

Outdoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

EVERLO
Lifespan L80/B10 at 25 °C

55000 h 1)
Type of sensor

Moti
Sensor technology

Microwave
Sensor detection angle

150 °
Detection range of motion sensor

3…8 m
Detection threshold of daylight sensor

2…50 lx
Light emitting surface material

Polycarbonate (PC)
Sensor controlled switching time

5 s…30 min
Luminous flux in emergency operation mode

1220 lm
Output current

350…300…250…200 mA
Lifespan L90/B10 at 25 °C

40000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9005
Wattage in emergency operation mode

10 W
ECG - Output ripple current

< 5 %
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation included
EPD

LEDV-00029-V01.01-EN
6 W

118 lm/W
10 W

122 lm/W
7 W

120 lm/W
8.5 W

120 lm/W
