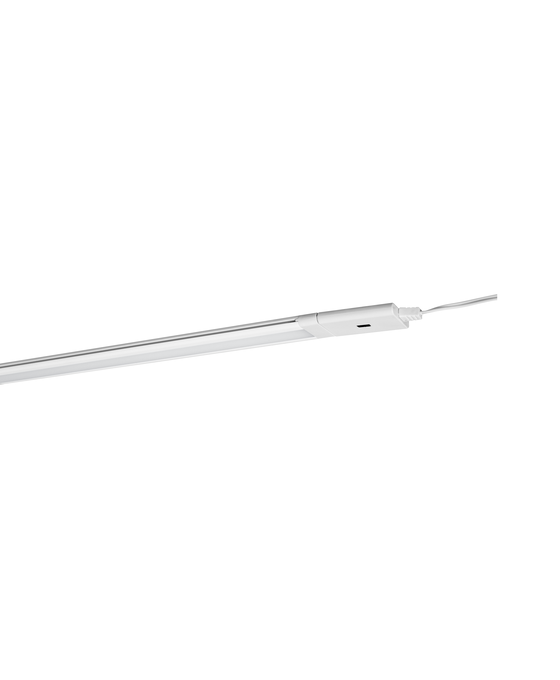

Cabinet LED Slim Sensor 500mm

Cabinet LED Slim Sensor 500mm

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854395864 Категория:
Product benefits
  • Low voltage luminaire for DC operation with external driver
  • Very slim design
  • Homogenous light distribution
  • Easy and fast mounting on nearly every surface (adhesive tape or screws)
Areas of application
  • Shelf and undercabinet lighting
Product features
  • Luminous flux: up to 470 lm
  • Switch on and off by movements with 5 cm distance in front of the infrared motion sensor
  • Stepless dimming by covering the infrared motion sensor in 5 cm distance for at least one second
  • Material: aluminum
  • Product color: white
  • Available in two lengths: 30 cm and 50 cm
  • Available as single and double luminaire kit
Equipment / Accessories
  • External mains adapter (cable length: 1.5 m) included
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
GTIN

4099854395864
Nominal wattage

10.00 W
Nominal voltage

220…240 V
Nominal current

100.000 mA
Luminous flux

470 lm
Luminous efficacy

47 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

≥80
Standard deviation of color matching

≤6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

100 °
Height

8.00 mm
Product weight

300.00 g
Product color

White
Housing color

White
Body material

Polycarbon, Acrylonitrile
Type of connection

Plug type C (EU)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h 1)
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Cabinet undersides
Protection class

II
Mercury content

0.0 mg
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Power factor λ

> 0.5
Operating mode

External LED driver
Total luminous flux of contained light sources

810 lm
Protection class IK (shock resistance)

IK03
Length

500.00 mm
Width

37.60 mm
Application environment

Indoor
Type of sensor

Motion
Sensor technology

Infrared/Photocell
Detection range of motion sensor

5 cm
