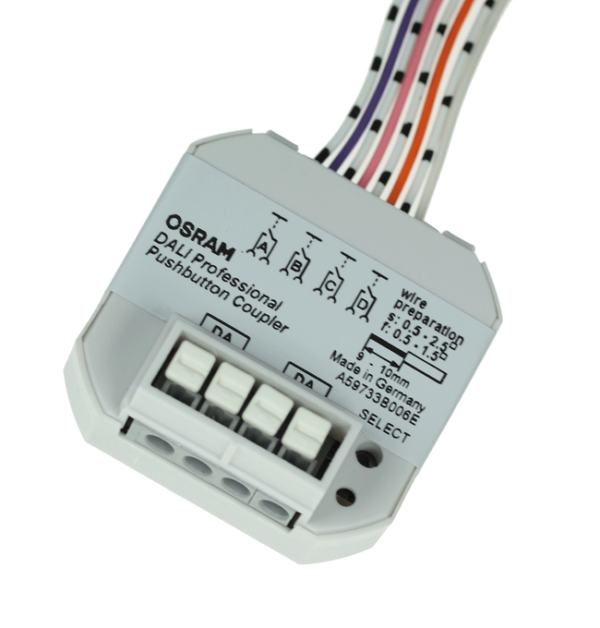

DALI Coupler Pushb G2

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4062172087575 Категория:
Product benefits
  • Standard pushbuttons/switches can be used
  • DALI-2 certified
  • DALI Bus powered (No mains connection necessary)
  • Multiple couplers connectable to the same DALI line
Areas of application
  • Suitable for installation in flush-type boxes
  • Individual offices
  • Classrooms
  • Conference rooms
  • Production and assembly facilities
Product features
  • DALI pushbutton coupler
  • 4 floating inputs
GTIN

4062172087575

Nominal wattage

0.10 W

Nominal voltage

16 V

Height

21.00 mm

Product weight

25.00 g

Product color

Light grey

Ambient temperature range

-20…+50 °C

Type of protection

IP20

Dimmable

No

Minimum rate of recycled material in packaging

80 % 1)

Minimum percentage of recycled content in the product

0 % 1)

Product recyclability

Mostly recyclable product 1)

Packaging recyclability

Mostly recyclable packaging 1)

List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No

Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes

List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)

Protection class

II

Mains frequency

0 Hz

Length

43.00 mm

Width

43.00 mm

Quantity of precious metals

0 mg

Quantity of rare earths

0 mg

Dimming interface

DALI-2

Approval marks – approval

CE

Type of installation

Integrated in flush device box
