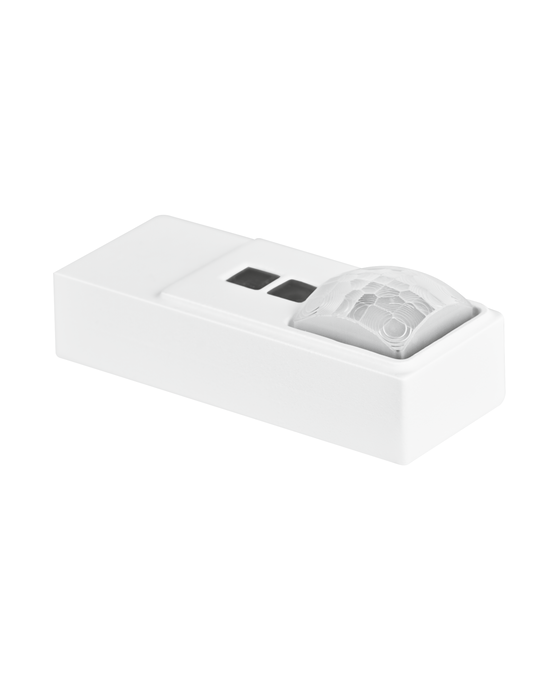

Name: DALI SENSOR LS/PD LI UF G2 - led-sklad.ru
SKU: 4062172072045
Availability: InStock

Extremely low profile
Presence detection range can be restricted by snap on shutters
DALI-2 certified
DALI Bus powered (No mains connection necessary)
Multiple sensors connectable to the same DALI line
Integreatable in light- and building management systems supporting DALI-2 sensors

Suitable for indoor applications
Installation in office luminaires
Suitable for floor standing luminaires in combination with an application controller

GTIN	4062172072045
Nominal wattage	0.10 W
Nominal voltage	16 V
Height	16.00 mm
Product weight	10.00 g
Product color	White
Ambient temperature range	-20…+50 °C
Type of protection	IP20
Dimmable	No
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
Protection class	II
Mains frequency	0 Hz
Length	50.00 mm
Width	21.00 mm
Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Dimming interface	DALI-2
Approval marks – approval	CE
Type of installation	Luminaire integration
Maximum installation height	4 m
Detection area	6 m
Detection angle	90 °
Operating range, light sensor	0…1000 lx
