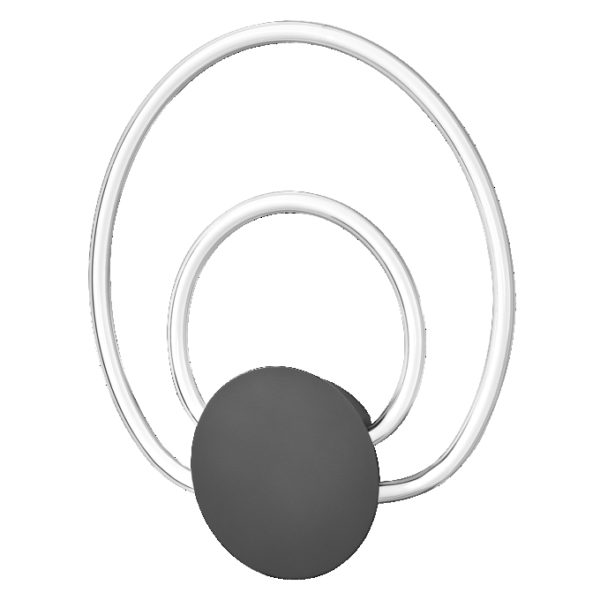

Decor Helios Wall 12W 830 Click Select

Decor Helios Wall 12W 830 Click Select

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854453779 Категория:
Product benefits
  • Even filament illumination
  • 3-step selecting by wall switch to turn on indirect and direct lights separately (click select)
  • Minimalistic style fits to every room
  • Easy mounting
Areas of application
  • Indoor applications
  • Corridors, entrance areas, stairwells, living rooms, basements
Product features
  • Housing material: polycarbonate (PC)
  • High-power LED
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854453779
Nominal wattage

12.00 W
Nominal voltage

220…240 V
Nominal current

65.000 mA
Luminous flux

960 lm
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

360 °
Height

416.00 mm
Product weight

900.00 g
Product color

Dark gray
Housing color

Dark gray
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

25000 h 1)
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Protection class

I
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Inrush current time Th50

150 µs
Power factor λ

≥0.5
Total harmonic distortion

< 85 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

1470 lm
Max. number of luminaires per miniature circuit breaker B16

53
Max. number of luminaires per miniature circuit breaker C10

44
Max. number of luminaires per miniature circuit breaker C16

71
Protection class IK (shock resistance)

IK03
Length

335.00 mm
Width

39.00 mm
Application environment

Indoor
