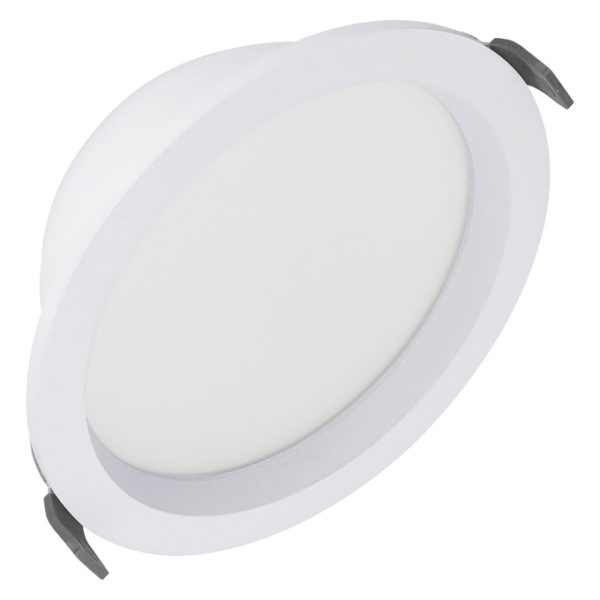

DL CMFT DA D150 P 18W ML 93040 OP WT

DL CMFT DA D150 P 18W ML 93040 OP WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854490965 Категория:
Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • Energy savings thanks to high system efficacy: up to 120 lm/W
  • Highly versatile due to Multi Select functions
  • High color rendering index CRI > 90
  • External driver for extended flexibility and easy installation
  • Through wiring possible via additional connector box accessory
  • Type of protection: IP44
  • Easy installation with fast connection
  • Further variants with DALI-2 driver, Zigbee driver or Emergency Conversion Kit available
Areas of application
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
Product features
  • IoT-ready luminaire with DALI-2 technology
  • Aluminum luminaires with 4 different cut-outs and opal diffuser
  • Very homogenous light distribution
  • External driver with Multi Lumen function of up to 5000 lm
  • Multi Color function
  • Consistent lighting color ≤ 3 SDCM
  • Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
  • Surface mounting frame only available for DALI versions D200 and D250 as separate accessory
  • Security rope for luminaire included
  • External control gear included
  • Suitable for use with separate Emergency Conversion Box
  • Gray and black exchangeable rings available as separate accessory
  • Extension rings are available as separate accessory
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
  • For Guarantee see
GTIN

4099854490965
Nominal wattage

18 W / 15 W / 12 W
Nominal voltage

220…240 V
Nominal current

82/71/59 mA
Luminous flux

2160 lm / 1800 lm / 1440 lm
Luminous efficacy

120 lm/W
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 90
Standard deviation of color matching

≤3 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

95 °
Height

57.00 mm
Product weight

385.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 5-Pole
Type of protection

IP44/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Standards

EN
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

160.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

24.8 A
Inrush current time Th50

6.34 µs
Power factor λ

≥0.90
Total harmonic distortion

≤ 15 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

4000 K
Max. number of luminaires per miniature circuit breaker B16

30
Max. number of luminaires per miniature circuit breaker C10

24
Max. number of luminaires per miniature circuit breaker C16

38
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Mounting width

150 mm
Type of dimming

DALI
Application environment

Indoor
Luminous intensity

—
Added function

MULTI SELE
Lifespan L80/B10 at 25 °C

70000 h 1)
Luminous flux in emergency operation mode

373 lm
Mounting diameter

150 mm
Mounting depth

57 mm
Output current

450/350/300 mA
ECG - Length

164 mm
ECG - Width

45 mm
ECG - Height

25 mm
Lifespan L90/B10 at 25 °C

40000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

3 W
ECG - Output ripple current

≤ 10 %
Type of Emergency Lighting (EL)

EL certified driver (0Hz / DC operation) for central battery operation includ
IoT ready

Support of DALI data type PART 251, 252, 253 1)
Recommended control gear

DR DALI-P-30/220-240/700
EPD

LEDV-00053-V01.01-EN
12 W

110 lm/W
15 W

110 lm/W
18 W

110 lm/W
