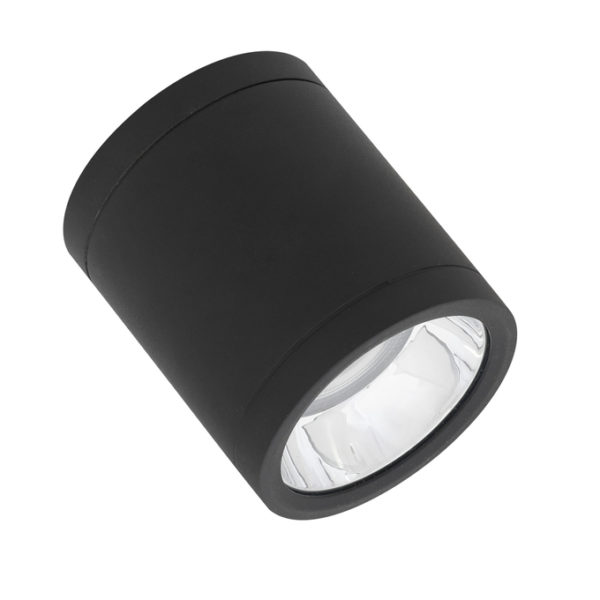

DL SURFACE IP65 DN 90 P 15W 840 36D BK

DL SURFACE IP65 DN 90 P 15W 840 36D BK

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075768918 Категория:
Product benefits
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • 5 years guarantee
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Suitable for indoor and outdoor installations
  • Corridors, stairways, entrance areas
  • Passages, underpasses
  • Public areas
Product features
  • Impact resistance: IK06
  • Push wire terminal for tool-free connection
  • Through wiring possible
  • Type of protection: IP65
  • Luminous flux: up to 4,950 lm
  • High luminous efficacy: up to 110 lm/W
  • Lifetime (L70/B50): 100,000 h (at 25 °C)
  • Ambient temperature in operation: -30…+40 °C
References / Links
  • For Guarantee see
GTIN

4058075768918
Nominal wattage

15.00 W
Nominal voltage

220…240 V
Nominal current

73.000 mA
Luminous flux

1650 lm
Luminous efficacy

110 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

≤6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

36 °
Height

107.00 mm
Product weight

600.00 g
Product color

Black
Housing color

Black
Body material

Aluminum, Polycarbonate (PC)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-30…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP65/IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

90.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

6.8 A
Inrush current time Th50

35.4 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Integrated driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Max. number of luminaires per miniature circuit breaker B16

118
Max. number of luminaires per miniature circuit breaker C10

74
Max. number of luminaires per miniature circuit breaker C16

118
Protection class IK (shock resistance)

IK06
Photobiological safety group acc. to EN62471

RG1
Application environment

Outdoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Lifespan L80/B10 at 25 °C

70000 h 1)
Adjustable

No
Light emitting surface material

Glass
UGR

< 19
Output current

350 mA
Lifespan L90/B10 at 25 °C

60000 h
Low flicker

Yes
ECG - Output ripple current

< 15 %
