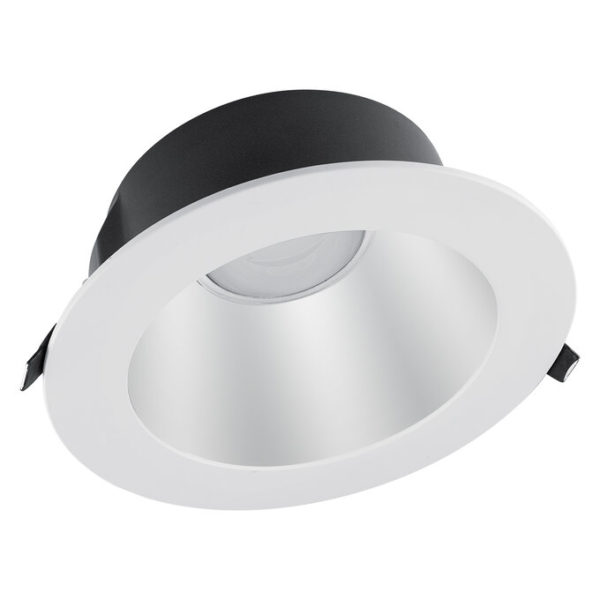

DL UGR19 PFM DN155 14 W 830 WT IP54

DL UGR19 PFM DN155 14 W 830 WT IP54

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075459137 Категория:
Product benefits
  • Good glare reduction (UGR < 19) and cut off angle up to 30° for comfortable indoor lighting
  • Easy and quick installation thanks to connector box with 5-pole toolless terminal
  • Low flicker light
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • 5 years guarantee
Areas of application
  • Suitable for office applications, especially for computer screen workplaces
  • Direct replacement for luminaires with compact fluorescent lamps
  • Entrances / Hallways
  • Bathrooms, kitchens and sheltered outdoor areas
  • General illumination
Product features
  • Housing material: Aluminum mirror-finished reflector
  • Type of protection: IP54 (room side) / IP20 (back side)
  • Connector box with push wire terminal for tool-free connection
  • Through-wiring possible
  • Luminaire versions with IoT-ready DALI-2 driver or IoT Zigbee 3.0 technology available
Equipment / Accessories
  • External control gear included
References / Links
  • For Guarantee see
GTIN

4058075459137
Nominal wattage

14.00 W
Nominal voltage

220…240 V
Nominal current

120 mA
Luminous flux

1500 lm
Luminous efficacy

105 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

≥80
Standard deviation of color matching

≤5 sdcm
Flickering metric (Pst LM)

—
Stroboscope effect metric (SVM)

—
Photobiological safety group acc. to EN62778

RG1
Beam angle

65 °
Height

65.00 mm
Product weight

650.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+45 °C
Temperature range at storage

-40…+70 °C
Type of connection

Screwless terminal
Type of protection

IP54/IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

70000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

180.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

20 A
Inrush current time Th50

200 µs
Power factor λ

≥0.90
Total harmonic distortion

< 15 %
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

120
Max. number of luminaires per miniature circuit breaker C10

80
Max. number of luminaires per miniature circuit breaker C16

120
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Luminous intensity

—
Lifespan L80/B10 at 25 °C

60000 h 1)
Number of illuminants

Not relevant
Light emitting surface material

Polycarbonate (PC)
Mounting diameter

155,0 mm
Mounting depth

100 mm
UGR

< 19
Output current

450 mA
ECG - Length

114 mm
ECG - Width

45 mm
ECG - Height

28 mm
Lifespan L90/B10 at 25 °C

40000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9016
ECG - Output ripple current

< 10 %
Recommended control gear

OSRAM OTI DALI 50/220-240/1A4 NFC
