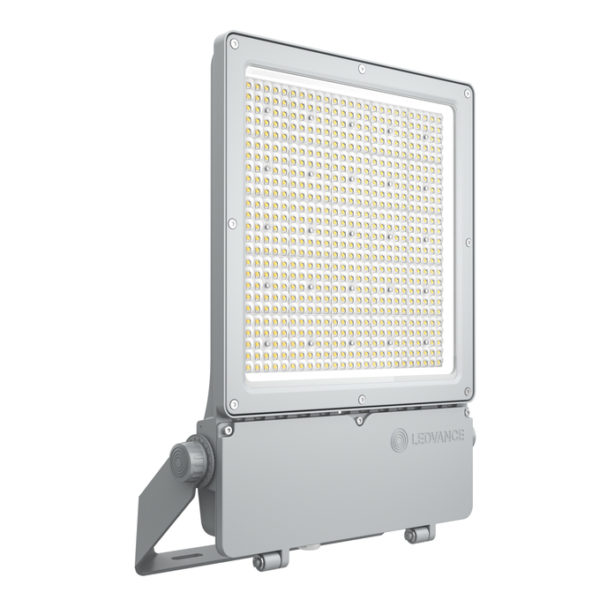

FL FLEX P 250W ML 840 A55X120 WAL

FL FLEX P 250W ML 840 A55X120 WAL

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854373664 Категория:
Product benefits
  • Corrosion resistance C5: tested in environments with high salinity
  • Serviceable luminaire: LED driver can be replaced
  • Flexible application due to a range of different lumen packages and beam angles
  • 3 cable entries for flexible use and easy connection between luminaires
  • Integrated breather for preventing condensation inside the luminaire
  • Energy savings of up to 91 % compared to halogen lamp floodlights
  • Energy savings of up to 51 % compared to luminaires that use conventional discharge lamps
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Intelligent design of the water drain to prevent standing water
  • Simple angle adjustment by locking every 2.5°
  • Clear angular degree indication
  • Key hole to ensure ease of installation
Areas of application
  • Coastal areas, like ports
  • General outdoor area lighting
  • Parking
  • Suitable for indoor and outdoor sports facilities
  • Architectural lighting
  • Industry
  • Direct replacement for luminaires using HID lamps
Product features
  • Corrosion resistance C5 based on 1,500 hours salt mist spray test
  • High luminous efficacy: up to 161 lm/W
  • Multi Lumen function: 4 lumen steps selectable
  • Daisy chaining possible
  • High surge protection: up to 10 kV (L/N-PE), 6 kV (L-N)
  • High lifetime (L70/B50): up to 120,000 h (at 25 °C)
  • Lumen packages up to 70000 lm
  • Additional 2200 K color temperature version available
Equipment / Accessories
  • Delivery without cables
  • Second cable gland included
  • 2 rubber inserts for 6,5 — 7,5 mm cables included
References / Links
  • For Guarantee see
GTIN

4099854373664
Nominal wattage

250 W / 212.5 W / 175 W / 137.5 W
Nominal voltage

220…240 V
Nominal current

1100.000 mA
Luminous flux

39000 lm / 33200 lm / 27700 lm / 22200 lm
Luminous efficacy

156 lm/W / 158 lm/W / 161 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

5 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

55 ° x 120 °
Height

68.00 mm
Product weight

8000.00 g
Product color

White aluminum
Housing color

White aluminum
Body material

Aluminum
Ambient temperature range

-30…+50 °C
Temperature range at storage

-30…+80 °C
Type of connection

Screwless terminal
Type of protection

IP66
Dimmable

No
Lifespan L70/B50 at 25 °C

120000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), Alkanes / Chloroalkanes C10-13 (85535-84-8)
Mounting type

Surface
Mounting location

Wa
Protection class

I
Mercury content

0.0 mg
Ball shot safe

Yes
With light source

Yes
Cover material

Glass
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50…60 Hz
Inrush current

100 A
Inrush current time Th50

208 µs
Power factor λ

> 0.96
Total harmonic distortion

< 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

6
Max. number of luminaires per miniature circuit breaker C10

6
Max. number of luminaires per miniature circuit breaker C16

10
Protection class IK (shock resistance)

IK08
Length

627.00 mm
Width

416.00 mm
Application environment

Outdoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Luminous intensity

24014 cd
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

100000 h 1)
Adjustable

Yes
Light emitting surface material

Glass
Output current

6250 mA
Lifespan L90/B10 at 25 °C

50000 h
Surge capability (L-N)

6 kV
Surge capability (L/N-Ground)

10 kV
Low flicker

Yes
RAL Color (most similar)

RAL 9006
ECG - Output ripple current

< 10 %
Corrosion resistance class acc. to EN 12944

C5
