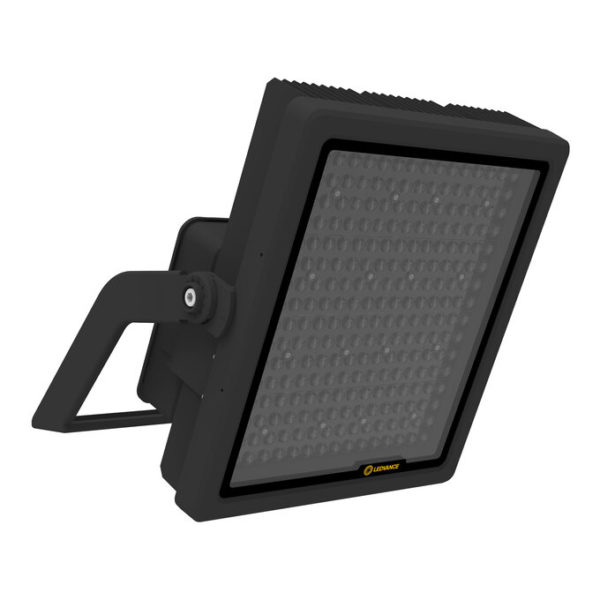

FL H M LUM V 500W 730 ASYM 110X30

FL H M LUM V 500W 730 ASYM 110X30

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854196447 Категория:
Product benefits
  • Low flicker light thanks to special electronic control gear
  • Energy savings thanks to high system efficacy: up to 140 lm/W
  • Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
  • 5 years guarantee
  • Symmetric and asymmetric light distribution for various application areas
Areas of application
  • Replacement for luminaires with mercury vapor or metal halide lamps
  • Outdoor use (IP66)
  • Suitable for high mast applications
  • Lighting of large areas
  • Construction areas
  • Industry
Product features
  • Cover made of high quality glass
  • High-power floodlight with up to 140 lm/W
  • Lifetime (L80/B50): up to 100,000 h (at 25 °C)
  • Joint or separate installation with floodlight high mast power supply
  • Highly-transparent, tempered glass diffuser
References / Links
  • For Guarantee see
GTIN

4099854196447
Nominal wattage

500.00 W
Nominal voltage

345 V
Nominal current

1360.000 mA
Luminous flux

56000 lm
Luminous efficacy

112 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

70
Standard deviation of color matching

5 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

110 ° x 30 °
Height

243.00 mm
Product weight

9700.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-40…+50 °C
Temperature range at storage

-40…+70 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP66
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Wa
Protection class

I
Mercury content

0.0 mg
With light source

Yes
Cover material

Tempered glass
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

974 µs
Power factor λ

> 0.90
Operating mode

External LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

4
Max. number of luminaires per miniature circuit breaker C10

3
Max. number of luminaires per miniature circuit breaker C16

5
Protection class IK (shock resistance)

IK10
Photobiological safety group acc. to EN62471

RG1
Length

479.00 mm
Width

389.00 mm
Application environment

Outdoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Lifespan L80/B10 at 25 °C

100000 h 1)
Adjustable

Yes
