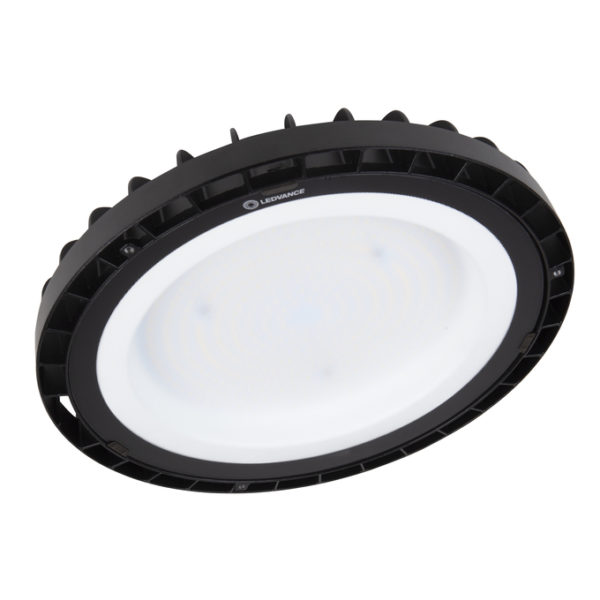

HB COMP V 225W 840 110DEG IP65

HB COMP V 225W 840 110DEG IP65

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075708204 Категория:
Product benefits
  • Modern exclusive design
  • Energy savings of up to 60 % compared to conventional high bay luminaires
  • Optimized weight and size due to compact design
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • Operating temperature: -20…45 °C
  • Black aluminum housing, tempered glass cover
  • Opal cover
  • Type of protection: IP65
  • Lifetime (L70): up to 50,000 h
  • High luminous efficacy: up to 120 lm/W
Equipment / Accessories
  • Bracket available
  • Reflector available
References / Links
  • For Guarantee see
GTIN

4058075708204
Nominal wattage

225.00 W
Nominal voltage

220…240 V
Nominal current

980 mA
Luminous flux

27000 lm
Luminous efficacy

120 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

≤5 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

110 °
Height

50.00 mm
Product weight

2000.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-20…+45 °C
Type of connection

Cable, 3-pole
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

> 100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Additional info can be provided per individual request
Diameter

300.00 mm
Replaceable light source

No
Mounting type

Post top
Mounting location

Ceiling
Protection class

I
Ball shot safe

No
With light source

Yes
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

10.64 A
Inrush current time Th50

16.52 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

13
Max. number of luminaires per miniature circuit breaker C10

8
Max. number of luminaires per miniature circuit breaker C16

13
Protection class IK (shock resistance)

IK06
Application environment

Indoor
Lifespan L80/B10 at 25 °C

45000 h 1)
Cable length

500 mm
Lifespan L90/B10 at 25 °C

30000 h
RAL Color (most similar)

RAL 9017
EPD

LEDV-00040-V01.01-EN
