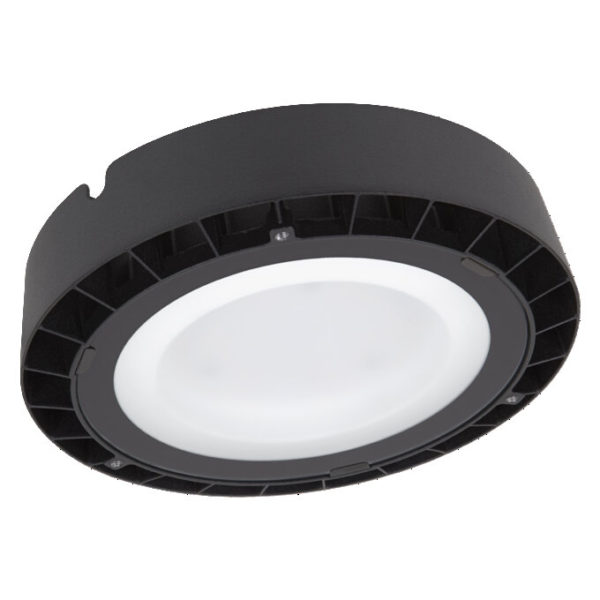

HIGH BAY VALUE 100 W 6500 K 100 DEG IP65 BK

HIGH BAY VALUE 100 W 6500 K 100 DEG IP65 BK

2 900,00 ₽

Артикул: 4058075408425 Категория:
Product benefits
  • Modern exclusive design
  • Energy savings of up to 60 % compared to conventional high bay luminaires
  • 3 years guarantee
  • Optimized weight and size due to compact design
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • Operating temperature: -20…50 °C
  • Black aluminum housing, tempered glass cover
  • Opal cover
  • Type of protection: IP65
  • Lifetime (L70): up to 50,000 h
  • High luminous efficacy: up to 110 lm/W
Equipment / Accessories
  • Bracket available
References / Links
  • For Guarantee see
GTIN

4058075408425
Nominal wattage

100.00 W
Nominal voltage

220…240 V
Nominal current

450 mA
Luminous flux

10000 lm
Luminous efficacy

100 lm/W
Color temperature

6500 K
Light color (designation)

Cool Daylight
Color rendering index Ra

> 80
Standard deviation of color matching

< 5 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

100 °
Height

51.40 mm
Product weight

1338.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-20…+50 °C
Type of connection

Cable, 3-pole
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

230.00 mm
Replaceable light source

No
Mounting type

Suspended/Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Tempered glass
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50…60 Hz
Inrush current

7.72 A
Inrush current time Th50

3.4 µs
Power factor λ

≥0.90
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

28
Max. number of luminaires per miniature circuit breaker C10

17
Max. number of luminaires per miniature circuit breaker C16

28
Protection class IK (shock resistance)

IK06
Photobiological safety group acc. to EN62471

RG1
Application environment

Indoor
Lifespan L80/B10 at 25 °C

32000 h 1)
Cable length

500 mm
