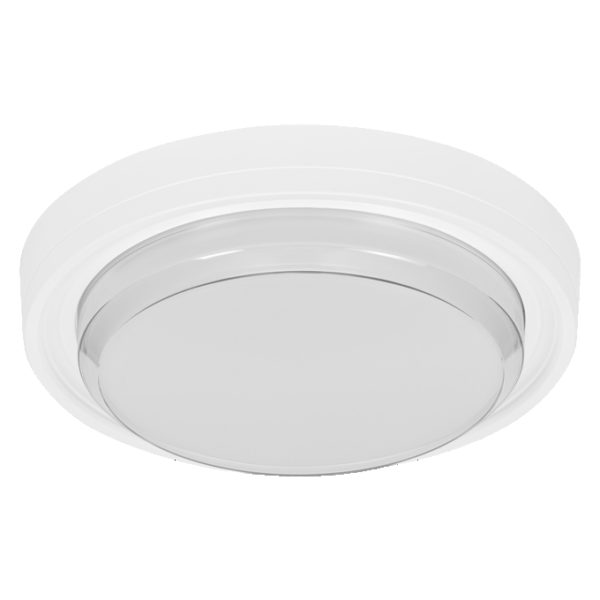

LED Bulkhead Style Round 24W CCT White

LED Bulkhead Style Round 24W CCT White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854689949 Категория:
Product benefits
  • Energy-efficient thanks to LED technology
  • Thanks to protection class IP54, the luminaire is splash-proof and protected against dust
  • PIR motion sensor with a detection range of up to 7 m
  • Easy and quick installation
Areas of application
  • Basements, garages, warehouses
  • Entrance areas
  • Outdoor
Product features
  • LED integrated indoor and outdoor luminaire in decorative design
  • Color temperature switch (CCT): 3000 K, 4000 K, 6500 K
  • Type of protection: IP54
  • Impact resistance: IK06
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854689949
Nominal wattage

24.00 W
Nominal voltage

220…240 V
Nominal current

174 mA
Luminous flux

2100 lm
Luminous efficacy

85 lm/W
Color temperature

3000 K / 4000 K / 6500 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

≤6 sdcm
Flickering metric (Pst LM)

≤1
Stroboscope effect metric (SVM)

≤0.4
Photobiological safety group acc. to EN62778

RG1
Height

48.00 mm
Product weight

340.00 g
Product color

White
Housing color

White
Body material

Acrylonitrile butadiene styrene (ABS)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-40…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP54
Dimmable

No
Lifespan L70/B50 at 25 °C

25000 h 1)
Number of switching cycles

20000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

220.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Wa
Protection class

II
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

11.5 A
Inrush current time Th50

3.5 µs
Power factor λ

> 0.5
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

6500 K
Total luminous flux of contained light sources

3300 lm
Max. number of luminaires per miniature circuit breaker B16

65
Max. number of luminaires per miniature circuit breaker C10

45
Max. number of luminaires per miniature circuit breaker C16

73
Protection class IK (shock resistance)

IK06
Luminous intensity

800
Number of illuminants

1
