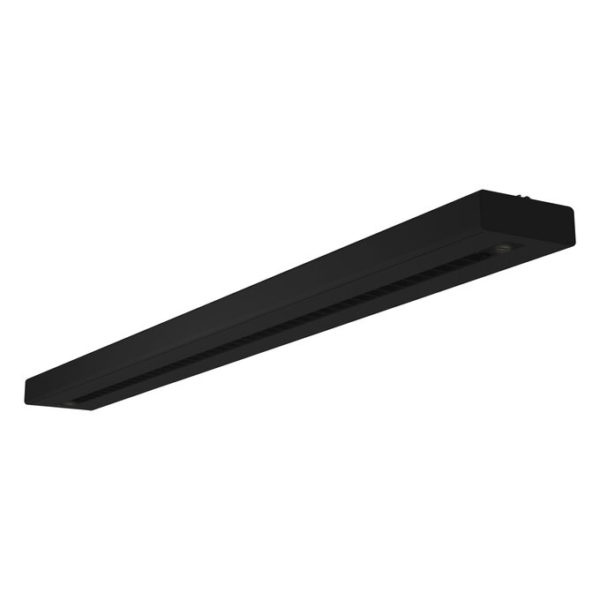

LN INV D 1500 P 52W 940 DAVR SN BK

LN INV D 1500 P 52W 940 DAVR SN BK

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854371820 Категория:
Product benefits
  • Easy upgradeability of light source and driver (EVERLOOP design)
  • Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
  • High performance with CRI90 and up to 130 lm/W
  • IoT-ready luminaire with DALI-2 driver, suitable for VIVARES and other Light Management Systems
  • Symmetric light distribution for various application areas
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • High color consistency with SDCM 3
  • Easy installation
  • Low flicker light thanks to special electronic control gear
  • Suitable for battery emergency installations acc. to EN 60598-2-22
  • Multiple mounting options thanks to different accessories
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, education, public buildings
  • Single and continuous line configuration
  • Direct lighting
Product features
  • Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
  • Includes EVERLOOP: Convenient replacement of light source and LED driver
  • PIR-Sensor with leader-follower function
  • Combined daylight and motion detection
  • Individual adjustment of the parameters with configuration software or remote control
  • Linkable into seamless light line with accessories (surface or pendant mounting)
  • Pendant mounting with suspension kit (to be ordered separetely)
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Lifetime (L80/B10): 70,000 h (at 25 °C)
  • Multi Lumen function: programmable DALI-2 driver
Equipment / Accessories
  • Suspension kit available for pendant luminaire version (to be ordered separately)
  • Inline, corner and infill connectors available as separate accessory
  • Through-wiring cable kit available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • For Guarantee see
GTIN

4099854371820
Nominal wattage

52 W / 48 W / 44 W / 39 W
Nominal voltage

220…240 V
Nominal current

232…210…200…185 mA
Luminous flux

6250 lm / 5850 lm / 5700 lm / 5100 lm
Luminous efficacy

120 lm/W / 122 lm/W / 130 lm/W / 131 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥90
Standard deviation of color matching

3 sdcm
Flickering metric (Pst LM)

≤1
Stroboscope effect metric (SVM)

≤0.4
Photobiological safety group acc. to EN62778

RG1
Beam angle

90 °
Height

43.00 mm
Product weight

3870.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-20…+50 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), Tripnehyl Phosphate (115-86-6), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) — (3147-75-9)
Mounting type

Suspended/Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

25.2 A
Inrush current time Th50

40 µs
Power factor λ

> 0.90
Total harmonic distortion

≤ 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Only by an expert
Max. number of luminaires per miniature circuit breaker B16

29
Max. number of luminaires per miniature circuit breaker C10

23
Max. number of luminaires per miniature circuit breaker C16

38
Protection class IK (shock resistance)

IK06
Photobiological safety group acc. to EN62471

RG0
Length

1475.00 mm
Width

125.00 mm
Type of dimming

DALI-2
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

EVERLO
Lifespan L80/B10 at 25 °C

70000 h 1)
Type of sensor

Moti
Sensor technology

Passive infrared/Photocell
Sensor detection angle

80 °
Detection range of motion sensor

1.7 m … 4 m
Adjustable

No
Light emitting surface material

Polymethylmethacrylate (PMMA)
Sensor controlled switching time

10 s … 30 min
UGR

< 19
Output current

1050mA / 975mA / 900mA / 800 mA
Lifespan L90/B10 at 25 °C

35000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9005
ECG - Output ripple current

≤ 5 %
IoT ready

Support of DALI data type PART 251, 252, 253 1)
Recommended control gear

OSRAM type OTI DALI 50/220-240/1A4 NFC L
EPD

LEDV-00073-V01.01-EN
48 W

122 lm/W
39 W

131 lm/W
52 W

120 lm/W
44 W

130 lm/W
