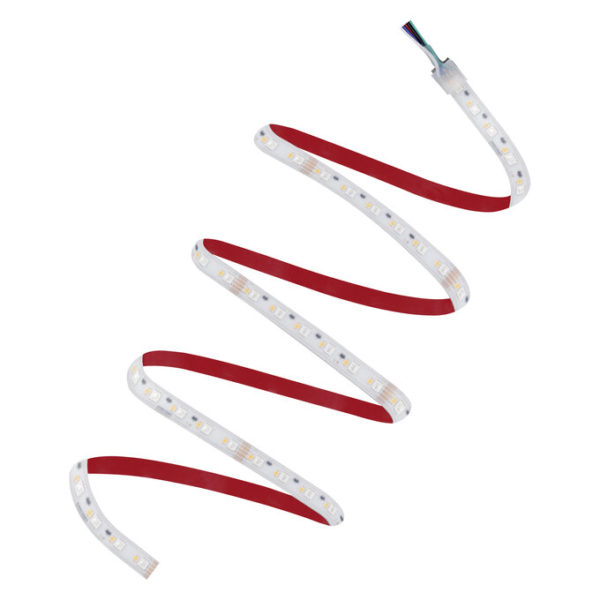

LS P 1000 RGBW 930 5 IP67

LS P 1000 RGBW 930 5 IP67

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854358876 Категория:
Product benefits
  • Very good white light quality thanks to color rendering index Ra > 90 and dedicated white LEDs
  • Great scope of design options due to long and flexible RGBW LED strips
  • Easy mounting thanks to self-adhesive tape
  • Simple connection thanks to integrated cables on both sides
  • Maximum flexibility due to large range of accessories
  • Easy installation, no tools required for connection
Areas of application
  • General illumination
  • Architecture lighting
  • Dynamic light as an architectural effect in public zones
  • Intensive color effects for special moods
  • Suitable for indoor and outdoor applications (IP67)
  • Hotels and Offices
  • Residential interiors
Product features
  • Flexible and cuttable LED strip with white Chip and Multichip RGB LEDs
  • Smallest cuttable unit: 83,30 mm
  • Lifetime (L70/B50): up to 50,000 h at Ta: 55°C
  • Dimmable by pulse width modulation (PWM)
  • Highly UV-resistant
  • Salt mist proof
  • Type of protection: IP67
GTIN

4099854358876
Nominal wattage

106.00 W 1)
Nominal voltage

24 V
Nominal current

4440.000 mA
Luminous flux

7735 lm 1)
Luminous efficacy

119 lm/W
Color temperature

3000 K
Light color (designation)

RG
Color rendering index Ra

> 90
Standard deviation of color matching

< 4 sdcm
Beam angle

115 °
Height

4.50 mm
Product weight

370.00 g
Product color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+55 °C 1)
Temperature range at storage

-20…+80 °C
Type of protection

IP67
Dimmable

Yes 1)
Standards

Acc. to IEC 624
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Mounting location

Ceili
Protection class

III
Cover material

Silicone
Inrush current

0.03 A
Length

5060.00 mm
Width

14.00 mm
Product remark

Available from December 2024
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Construction wattage

106.00 W
Type of current

DC
Maximum temperature at tc test point

92 °C 2)
Input voltage DC

24 V
Cable length

500.000
Input voltage range

23…25 V
Temperature range in operation

-20…+55 °C
Permitted rel. humidity during operation

0…93 %
Approval marks – approval

T
Wire preparation length, input side

5.00 mm
Overheating protection

No
Wire preparation length, output side

5.00 mm
Prewired

Yes
Conductor cross section

0.5 mm²
Light color LED

RGB, white
Rated beam angle (half peak value)

115.00 °
Number of LEDs per module

840
Nominal lamp life time

50000 h
Energy class of contained light source

F
Nominal wattage per meter

21 W 2)
Luminous flux per meter

1615 lm
Number of LEDs per meter

168
Lowest bending radius

30,0 mm
Self-adhesive

Yes
Luminous flux per module chain

7735 lm
Luminous flux per meter - Red

150 lm/m
Luminous flux per meter - Green

490 lm/m
Luminous flux per meter - Blue

105 lm/m
Luminous flux per meter - RGB

700 lm/m
Number of LEDs per smallest unit

14
Length – smallest unit

83,33 mm
LED pitch

11.90 mm
Salt mist resistance acc. IEC 60068-2-52

Yes
UV resistance acc. IEC 60068-2-5

Yes
