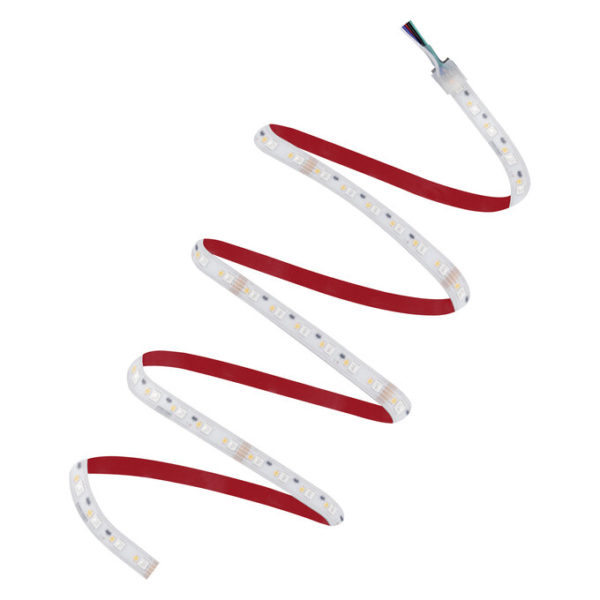

LS PFM -1000/RGBW/865/5/IP66

LS PFM -1000/RGBW/865/5/IP66

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075436237 Категория:
Product benefits
  • Great scope of design options due to long and flexible RGBW LED strips
  • Easy installation, no tools required for connection
  • Easy mounting thanks to self-adhesive tape
  • Maximum flexibility due to large range of accessories
  • Simple connection thanks to integrated cables on both sides
  • Good white light quality thanks to dedicated white LEDs
Product features
  • Flexible and cuttable LED strip with white Chip and Multichip RGB LEDs
  • Smallest cuttable unit: 100 mm
  • Lifetime (L70/B50): up to 40,000 h at Tc max. ≤ 85°C
  • Dimmable by pulse width modulation (PWM)
  • Type of protection: IP66
  • Highly UV-resistant
  • Salt mist proof
GTIN

4058075436237
Nominal wattage

98.00 W 1)
Nominal voltage

24 V 3)
Nominal current

4080 mA
Luminous flux

6035 lm 1)
Luminous efficacy

107 lm/W
Color temperature

6500 K
Light color (designation)

RG
Color rendering index Ra

>80
Standard deviation of color matching

‹4 sdcm
Beam angle

120 °
Height

5.00 mm
Product weight

501.00 g
Ambient temperature range

-20…+55 °C 1)
Temperature range at storage

-35…+85 °C
Type of protection

IP66
Dimmable

Yes 1)
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Additional info can be provided per individual request
Protection class

III
Cover material

Silicone
Length

5000.00 mm
Width

14.00 mm
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Construction wattage

98.00 W
Type of current

DC
Maximum temperature at tc test point

85 °C 2)
Cable length

500.000
Input voltage range

23…25 V 3)
Approval marks – approval

T
Prewired

Yes
Conductor cross section

0.5 mm²
Light color LED

RGB, white
Rated beam angle (half peak value)

120.00 °
Number of LEDs per module

600
Nominal lamp life time

40000 h
Energy class of contained light source

F
Nominal wattage per meter

20.0 W 2)
Luminous flux per meter

1170 lm
Number of LEDs per meter

120
Lowest bending radius

30 mm
Self-adhesive

Yes
Luminous flux per module chain

6982 lm
Luminous flux per meter - Red

90 lm/m
Luminous flux per meter - Green

240 lm/m
Luminous flux per meter - Blue

60 lm/m
Luminous flux per meter - RGB

375 lm/m
Number of LEDs per smallest unit

12
Length – smallest unit

100 mm
LED pitch

16.67 mm
Salt mist resistance acc. IEC 60068-2-52

Yes
UV resistance acc. IEC 60068-2-5

Yes
Short pitch

No
