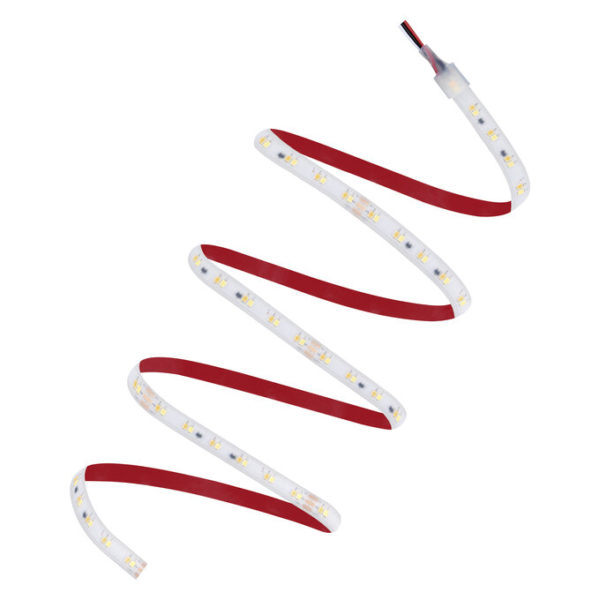

LS SUP -2000/TW/927-965/5/IP67

LS SUP -2000/TW/927-965/5/IP67

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075436008 Категория:
Product benefits
  • Great scope of design options due to long and flexible TW LED strips
  • Easy installation, no tools required for connection
  • Easy mounting thanks to self-adhesive tape
  • Maximum flexibility due to large range of accessories
  • Simple connection thanks to integrated cables on both sides
Areas of application
  • Suitable for indoor and outdoor applications (IP67)
  • Cove lighting
  • Hotels
  • Offices
  • General illumination
Product features
  • Adjustable color temperature via Tunable White: 2,700…6,500 K
  • Smallest cuttable unit: 100 mm
  • Lifetime (L70/B50): up to 50,000 h at Tc max. ≤ 85°C
  • Dimmable by pulse width modulation (PWM)
  • Type of protection: IP67
  • Highly UV-resistant
  • Salt mist proof
GTIN

4058075436008
Nominal wattage

108.00 W
Nominal voltage

24 V 2)
Nominal current

4500 mA
Luminous flux

8450 lm
Luminous efficacy

76 lm/W
Color temperature

2700…6500 K
Light color (designation)

Tunable White
Color rendering index Ra

> 90
Standard deviation of color matching

‹4 sdcm
Beam angle

110 °
Height

5.00 mm
Product weight

440.00 g
Ambient temperature range

-20…+55 °C 1)
Temperature range at storage

-35…+85 °C
Type of protection

IP67
Dimmable

Yes 1)
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Protection class

III
Cover material

Silicone
Length

5000.00 mm
Width

12.00 mm
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Construction wattage

108.00 W
Type of current

DC
Maximum temperature at tc test point

85 °C 2)
Cable length

500.000
Input voltage range

23…25 V 2)
Prewired

Yes
Conductor cross section

0.5 mm²
Light color LED

Tunable White
Rated beam angle (half peak value)

110.00 °
Number of LEDs per module

600
Nominal lamp life time

50000 h
Energy class of contained light source

G
Nominal wattage per meter

21.6 W 1)
Luminous flux per meter

1640 lm
Number of LEDs per meter

120
Lowest bending radius

30 mm
Self-adhesive

Yes
Luminous flux per module chain

9762 lm
Number of LEDs per smallest unit

6
Length – smallest unit

100 mm
LED pitch

16.67 mm
Salt mist resistance acc. IEC 60068-2-52

Yes
UV resistance acc. IEC 60068-2-5

Yes
Short pitch

No
Luminous flux per meter - Warm white

900 lm/m
Luminous flux per meter - Cool white

1010 lm/m
